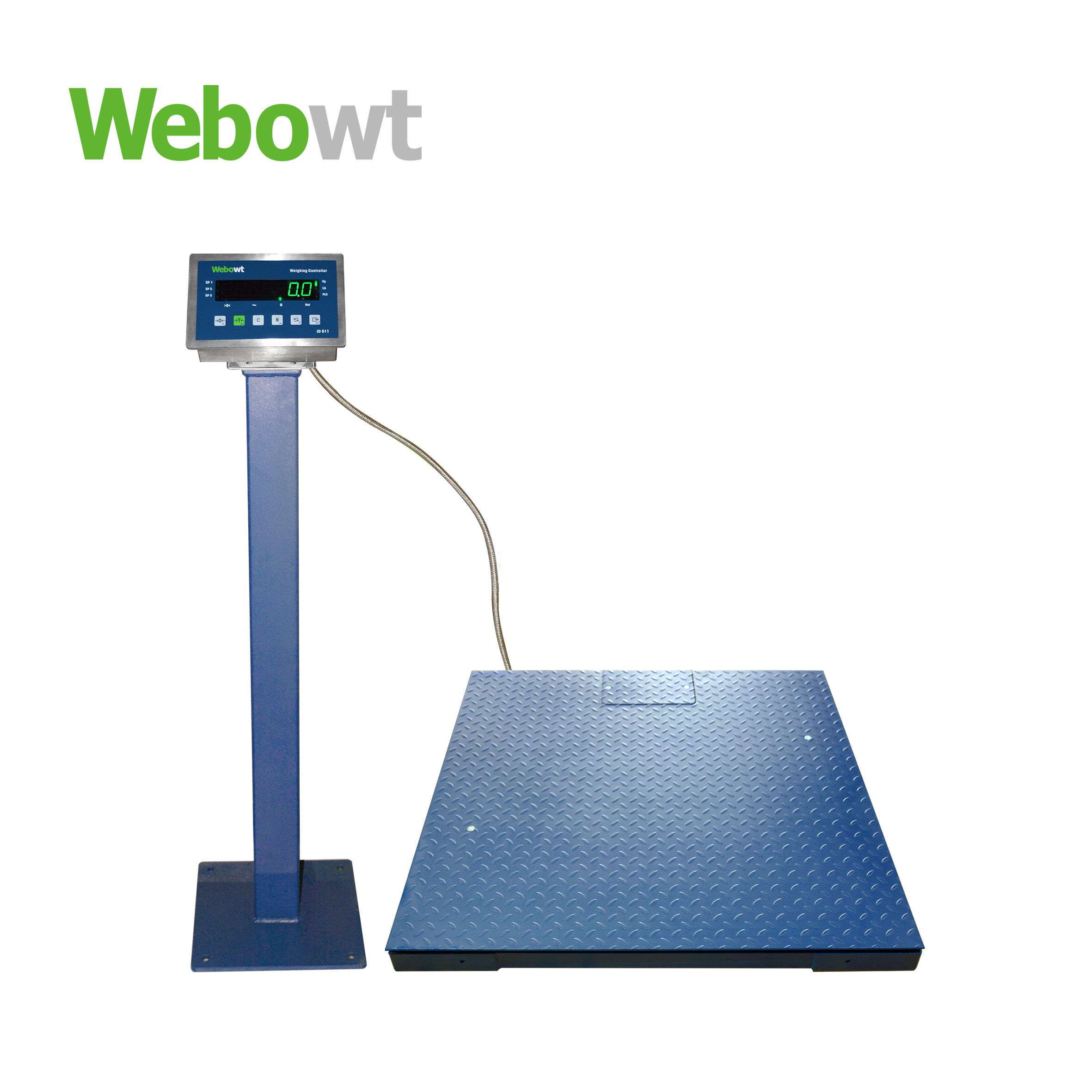

FWD PHC
WEBOWT
510PC0000A
PHC/PHS
Specifications and Models
Product Name | FWD PHC/PHS | |||||||
Product Model | SCS - | |||||||
Accuracy Class | III | |||||||
Application | Safety area | |||||||
Max. Capacity / Verification division value | 300kg/0.05kg; 500kg/0.1kg; 600kg/0.1kg; 1t/0.2kg; 1.2t/0.2kg; 1.5t/0.2kg; 2t/0.5kg; 3t/0.5kg | |||||||
Junction Box | DLJB-015-4LC | |||||||
Scale Material | PHC: Carbon Steel Powder Coating; PHS: A304 Full Stainless Steel | |||||||
Load Cell | PHC: WB702CR Digital Load Cell; PHS: WB702 Digital Load Cell | |||||||
Scale Height | 9cm | |||||||
Scale Dimension (Width x Length) | Maximum Capacity | |||||||
300kg | 500kg | 600kg | 1000kg | 1200kg | 1500kg | 2000kg | 3000kg | |
60cm x 60cm | ● | ● | ● | |||||
80cm x 80cm | ● | ● | ● | ● | ● | ● | ● | ● |
100cm x 100cm | ● | ● | ● | ● | ● | ● | ● | ● |
120cm x 120cm | ● | ● | ● | ● | ● | ● | ● | ● |
125cm x 125cm | ● | ● | ● | ● | ● | ● | ● | ● |
125cm x 150cm | ● | ● | ● | ● | ● | ● | ||
150cm x 150cm | ● | ● | ● | ● | ● | ● | ||
150cm x 200cm | ● | ● | ● | |||||
200cm x 200cm | ● | ● | ● | |||||
Non-standard dimensions | Support non-standard size customization |
