Livestock Dynamic Weighing Scale
Home » Product selection area » Intelligent Weighing System » Livestock Dynamic Weighing Scale

Livestock Weighing Scale

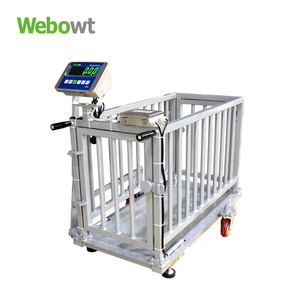

WEBOWT Livestock WEIGHING SCALE
WEBOWT Livestock WEIGHING SCALE ANIMAL WEIGHING SYSTEM
PDC Animal walking trough scale
Dynamic Weighing scale for Livestock and Breeding Stock
Livestock Weighing Scale
  • WEBOWT Livestock WEIGHING SCALE ANIMAL WEIGHING SYSTEM
    WEBOWT Livestock WEIGHING SCALE ANIMAL WEIGHING SYSTEM
  • WEBOWT Livestock WEIGHING SCALE
    WEBOWT Livestock WEIGHING SCALE FOR COW, SHEEP, PIG, CHICKEN, ETC.
  • WEBOWT Neonatal Piglets Weighing for Breeding Pigs Management System 1
    WEBOWT Neonatal Piglets Weighing for Breeding Pigs Management System 1
  • WEBOWT Neonatal Piglets Weighing for Breeding Pigs Management System 2
    PDA Data Transmittion-WEBOWT Neonatal Piglets Weighing for Breeding Pigs Management System
  • WEBOWT Livestock WEIGHING SCALE Hot Galvanized
    WEBOWT Livestock WEIGHING SCALE Hot Galvanized
  • PDC Animal walking trough scale
    WEBOWT LIVESTOCK WALKING TROUGH SCALE
6_03
Brief Introduction
Features and Applicatioins:
SS304 all-stainless steel indicator shell, aviation plug interface, IP68 waterproof
sBluetooth automatic transmission of weighing records to app
Android livestock scale weighing management app
User login management
Equipment pairing management
Each weighing data and weighing record shall be recorded and saved and exported to excel file

Working Process Chart
WEBOWT Livestock Working chart
Configuration
WEBOWT Livestock WEIGHING SCALE Configuration
Configuration Category

  • WEBOWT Livestock and Breeding Stock Weighing System

Download

Manual

  • WEBOWT Weighing Scale.pdf

Typical Application
Recommended Products
ID226, ABS
ID226, ABS
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons
  • Relay output board
  • Ethernet communication board
  • Bluetooth communication board
  • WIFI communication board
Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method
  • ABS plastic shell (optional with round pipe bracket or square pipe bracket).
  • 304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).
0
0
ID226, SS1 Body
ID226, SS1 Body
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons
  • Relay output board
  • Ethernet communication board
  • Bluetooth communication board
  • WIFI communication board
Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method
  • 304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).
0
0
ID226 , SS2 Body
ID226 , SS2 Body
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons
  • Relay output board
  • Ethernet communication board
  • Bluetooth communication board
  • WIFI communication board
Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method
  • 304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).
0
0
ID226, SLIM
ID226, SLIM
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons
  • Relay output board
  • Ethernet communication board
  • Bluetooth communication board
  • WIFI communication board
Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method
  • 304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).
0
0
ID260
ID260
ID260 general industrial weighing instrument, all stainless steel shell, suitable for a variety of harsh industrial environments, a variety of installation forms to choose from, new OLED display, graphical display, support Chinese and English and other Chinese, rich communication interface, can realize the transmission of transaction data through serial port, USB and Ethernet, and can be connected to the MES system. In addition to basic weighing applications, it also provides a wide range of applications such as truck scale weighing, counting, checkweighing, animal weighing, etc., which are widely used in food, pharmaceutical, chemical, electronics and other industries.
· All stainless steel shell, IP66/IP67 protection level, to meet a variety of harsh industrial application scenarios
· Green OLED display, graphical display, support Chinese and English and other Chinese, large font display
· The keyboard is equipped with independent power on/off, 9 function keys, 4 guide keys and 12 alphanumeric keys, supporting Chinese, English and numeric input
· Analog platform with up to 6 x 150 ohm analog sensors
· It is equipped with COM1-RS232, COM2-RS485, USB interface, optional network port and WiFi component
· I/O: 4 in and 6 out components are optional
· Built-in SD card option
· Power supply: 100-240VAC AC power supply or built-in rechargeable battery
· Mounting bracket: The bracket is optional, and the instrument supports desktop, square tube column installation, round pipe column installation and wall bracket installation
· It supports connecting printers and scanners, and can choose from three label printing modes: normal mode, counting mode, and checkweighing mode
0
0
ID551PN , Single Scale Weighing Controller
ID551PN , Single Scale Weighing Controller
7-bit LED display
Supports 1 analog scale input configuration
Single channel supports up to 8 350-ohm analog load cells;
High precision 7500e, ordinary precision 6000e, OIML: 6000e
OIML & CE certification
Supports single LAN port version and dual LAN ports version selection
Serial port: RS232/485, supports MODBUS-RTU
Single LAN port version supports: MODBUS-TCP, TCP, UDP
Dual LAN ports version supports: PROFINET, EtherNet/IP, CC-LINK IE FB, EtherCAT
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Calibration with material
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 4W;
Installation Method
  • Metal housing standard industrial DIN
0
0
ID551PN , Multi Scales Weighing Controller (ABS)
ID551PN , Multi Scales Weighing Controller (ABS)
6-bit LED display, can switch to display the weight of 4 scales
Supports 1-4 analog scale input configurations, and supports up to 4 analog scale inputs
Each channel supports up to 8 350-ohm analog load cells;
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Supports single LAN port version and dual LAN ports version selection
Single LAN port version supports: MODBUS-RTU, MODBUS-TCP, TCP, UDP
Dual LAN ports version supports: PROFINET/EtherNet/IP/CC_LINK IE/EtherCAT
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
Installation Method
  • ABS plastic shell standard industrial DIN
  • Metal housing standard industrial DIN
0
0
ID551PN , Multi Scales Weighing Controller (Metal)
ID551PN , Multi Scales Weighing Controller (Metal)
6-bit LED display, can switch to display the weight of 4 scales
Supports 1-4 analog scale input configurations, and supports up to 4 analog scale inputs
Each channel supports up to 8 350-ohm analog load cells;
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Supports single LAN port version and dual LAN ports version selection
Single LAN port version supports: MODBUS-RTU, MODBUS-TCP, TCP, UDP
Dual LAN ports version supports: PROFINET/EtherNet/IP/CC_LINK IE/EtherCAT
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
Installation Method
  • ABS plastic shell standard industrial DIN
  • Metal housing standard industrial DIN
0
0
ID511, Panel
ID511, Panel
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
  • PROFIBUS-DP (Siemens PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • CC-Link (Mitsubishi PLC)
  • 4-20mA (16-bit precision DAC) x 1
  • 4-20mA (16-bit precision DAC) x 2
I/O (input/output options)
 In x 8 / OC Out x 12
 In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
ID511, Harsh
ID511, Harsh
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
  • PROFIBUS-DP (Siemens PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • CC-Link (Mitsubishi PLC)
  • 4-20mA (16-bit precision DAC) x 1
  • 4-20mA (16-bit precision DAC) x 2
I/O (input/output options)
  •  In x 8 / OC Out x 12
  •  In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
0
0
ID511, DIN Rail Mount
ID511, DIN Rail Mount
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
  • PROFIBUS-DP (Siemens PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • CC-Link (Mitsubishi PLC)
  • 4-20mA (16-bit precision DAC) x 1
  • 4-20mA (16-bit precision DAC) x 2
I/O (input/output options)
  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
ID511Pro , Panel
ID511Pro , Panel
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
  • EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
  • CC-link IE FB (Mitsubishi PLC)
  • EtherCAT (HIAS PLC)
Optional I/O (input/output)
  • In x 4 / MOS Out x 6.
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Calibration with material
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
0
0
ID511Pro , DIN Rail
ID511Pro , DIN Rail
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
  • EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
  • CC-link IE FB (Mitsubishi PLC)
  • EtherCAT (HIAS PLC)
Optional I/O (input/output)
In x 4 / MOS Out x 6.
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Calibration with material
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
0
0
ID511Pro , Harsh
ID511Pro , Harsh
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
  • EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
  • CC-link IE FB (Mitsubishi PLC)
  • EtherCAT (HIAS PLC)
Optional I/O (input/output)
  • In x 4 / MOS Out x 6.
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Calibration with material
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
0
0
ID511CKW
ID511CKW
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
  • PROFIBUS-DP (Siemens PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • CC-Link (Mitsubishi PLC)
  • Scale x 1 4-20mA (16-bit precision DAC)
  • Scales x 2 4-20mA (16-bit precision DAC)
I/O (input/output options)
 In x 8 / OC Out x 12
 In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
0
0
ID511CKW DIN
ID511CKW DIN
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
  • PROFIBUS-DP (Siemens PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • CC-Link (Mitsubishi PLC)
  • Scale x 1 4-20mA (16-bit precision DAC)
  • Scales x 2 4-20mA (16-bit precision DAC)
I/O (input/output options)
 In x 8 / OC Out x 12
 In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
ID510, Panel (Basic Version)
ID510, Panel (Basic Version)
2.7-inch OLED dot matrix graphic display, supports switching between Chinese and English
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
OIML & CE certificates
Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC) • CC-Tink (Mitsubishi PLC)
  • scale x 1 4-20mA (16-bit precision DAC) • scales x 2 4-20mA (16-bit precision DAC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
Optional I/O (input/output)
  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point code-breaking calibration • calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version/bagging version/checkweighing version/filling version/batching version
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
ID510, Panel (Batching application)
ID510, Panel (Batching application)

2.7-inch OLED dot matrix graphic display, supports switching between Chinese and English
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
OIML & CE certificates
Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC) • CC-Tink (Mitsubishi PLC)
scale x 1 4-20mA (16-bit precision DAC) • scales x 2 4-20mA (16-bit precision DAC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
Optional I/O (input/output)

  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12

Multiple calibration modes

  • Supports up to 5-point code-breaking calibration • calibration without weights
  • Remote calibration through PLC communication interface

Application supports

  • Basic weighing version/bagging version/checkweighing version/filling version/batching version

The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;

0
0
ID510, Panel (High speed weight check)
ID510, Panel (High speed weight check)
2.7-inch OLED dot matrix graphic display, supports switching between Chinese and English
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
OIML & CE certificates
Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC) • CC-Tink (Mitsubishi PLC)
  • scale x 1 4-20mA (16-bit precision DAC) • scales x 2 4-20mA (16-bit precision DAC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
Optional I/O (input/output)
  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point code-breaking calibration • calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version/bagging version/checkweighing version/filling version/batching version
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
ID510, Panel (Special version for filling)
ID510, Panel (Special version for filling)
2.7-inch OLED dot matrix graphic display, supports switching between Chinese and English
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
OIML & CE certificates
Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC) • CC-Tink (Mitsubishi PLC)
  • scale x 1 4-20mA (16-bit precision DAC) • scales x 2 4-20mA (16-bit precision DAC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
Optional I/O (input/output)
  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12
Multiple calibration modes
Supports up to 5-point code-breaking calibration • calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version/bagging version/checkweighing version/filling version/batching version
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
0
0
Online Message

Products

Application Industries

Contact Us
0086-519-85506673
(0086)18118003607
(0086)13775637333 (Wechat / WhatsApp )
No.3, Building Sino-Europe（ Changzhou）
Testing, Inspection and Certification
Cooperation Industrial Park,Tianning
District, Changzhou - 213000, Jiangsu, China
Mr. Chen: sales@webowt.com
Online Message
Copyright  2012-2024 Changzhou Weibo Weighing Equipment System Co.,Ltd. All Rights Reserved. 苏ICP备2024141126号-2 Powered by:www.leadong.com  SEO
