| Hardware: | |
|---|---|
| Scales: | |
| PLC Interface: | |
| Application: | |
| Power Supply: | |
| Quantity: | |
ID551D01N01A (220VAC) / ID551D01N01D (24VDC)
WEBOWT
8551P1F(220VAC) / 8551P1H(24VDC)

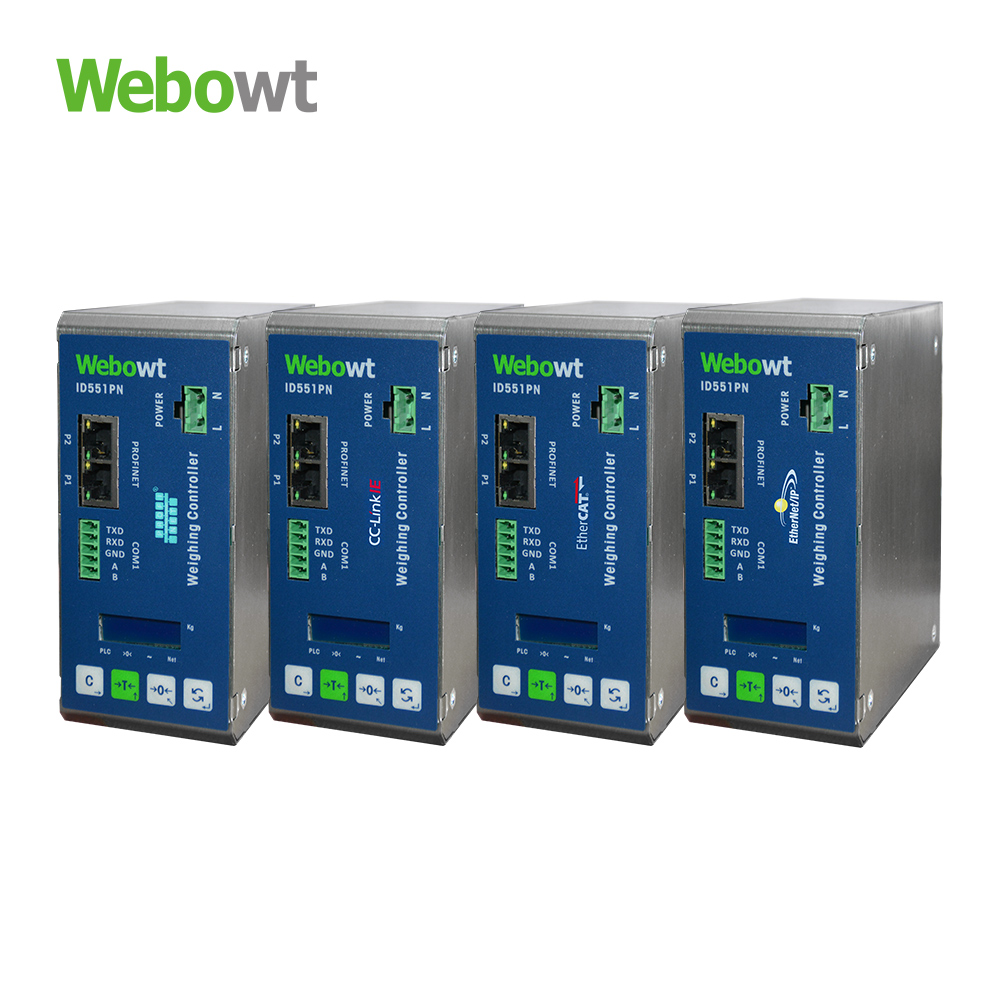

ID551PN
Product Features
6-bit LED display, can switch to display the weight of 4 scales
Supports 1-4 analog scale input configurations, and supports up to 4 analog scale inputs
Each channel supports up to 8 350-ohm analog load cells;
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Supports single LAN port version and dual LAN ports version selection
Single LAN port version supports: MODBUS-RTU, MODBUS-TCP, TCP, UDP
Dual LAN ports version supports: PROFINET/EtherNet/IP/CC_LINK IE/EtherCAT
Multiple calibration modes
Supports up to 5-point calibration
Calibration without weights
Remote calibration through PLC communication interface
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
Installation Method
ABS plastic shell standard industrial DIN
Metal housing standard industrial DIN
Product Selection Configuration
| Indicator Model Number | Shell Type | Hardware | Load Cell Interface | PLC Interface | Housing Material | Application Sub-Items | Power Supply | |
| ID551 | P | C | 1 | 0 | 0 | 0 | A | |
| ID551PN | D:DIN type | 0: RS232/485 ordinary precision | 1:Scale x1 2:Scales x2 3:Scales x3 4:Scales x4 | F:2 LAN ports (PROFINET) E:2 LAN ports (EtherNet/IP) A:2 LAN ports(EtherCAT) K:2 LAN ports (CC-LINK IE) | 0:Plastic shell 1:Metal housing | 0:Standard version | A:110/220VAC no power cable D:24VDC no power cable | |
| F:2 LAN ports(PROFINET) | 0:Plastic shell | T:Force measurement version | ||||||
| 1:Scale x1 2:Scales x2 | F:2 LAN ports(PROFINET)+I0 | 1:Fixed value control version | ||||||
| 1:Scale x1 2:Scales x2 3:Scales x3 4:Scales x4 | T:1 LAN port (TCP/IP,MODBUS-TCP) | 2:Transmitter version | ||||||
