Bench Scale-RKS Series

RKS-ID511 Balance
RKS-ID511BALANCE

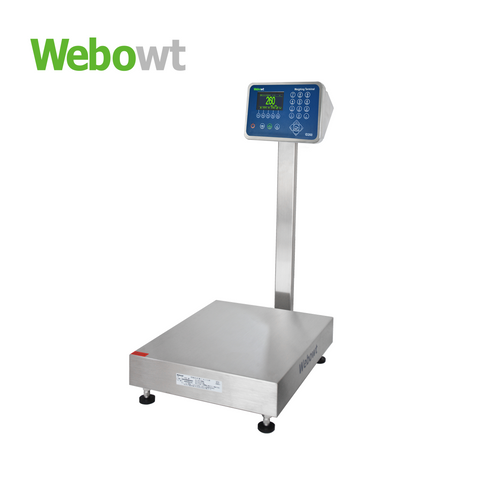

RKS Bench Scale
Bench Scale-RKS Series
Electronic scale platform in sanitary environment, washable and humid environment
 Features:
 RKS
  • All stainless steel open structure
  • The scale body is subject to electrochemical polishing, and the surface roughness Ra is less than 0.8um
  • WB702SH stainless steel laser welding sealing load cell
  • It is suitable for applications requiring Washability in food, medicine, chemical industry and so on
  • Easy to clean, open and robust scale body design and laser welded sealed load cells allow effective cleaning and help reduce possible bacterial infections
  • Food hygiene requirements: made of stainless steel A304, the surface is electrochemically polished to meet the salt spray test without rusting for 72 hours
  • RKS-ID511BALANCE
    WEBOWT RKS-ID511 BALANCE
  • RKS Bench Scale
    WEBOWT RKS-ID511 BALANCE
  • RKS-ID511 Balance
    WEBOWT RKS-ID511 BALANZA
Configuration Category
Drawing
RKS Drawing
Configuration
RKS Configuration
Download

Manual

  • WEBOWT Weighing Scale.pdf

Typical Application
Recommended Products
RGS Series Platform Scale
RGS Series Platform Scale
  • Swiss technology, laboratory precision, industrial grade applications
  • Adopting digital vibclassification wire mass load cell, it has high adaptability, high reliability, high repeatability and high stability to the environment.
  • Configuration ID511 Weighing indicator
  • Standard Configuration: RS232+RS232/485
  • Up to 75000e Verification division value
  • Supports multi-range and multi-precision application
  • Digital load cell
0
0
RNS Series Platform Scale
RNS Series Platform Scale
  • RNS-ID226SS2: Stainless steel sandblasted scale body, stainless steel table top
  • Standard configuration of indicator: RS232+485 Serial port
  • Standard configuration: lead-acid battery: 4AH, works for 24 hours on a single charge
0
0
Rolling axles RNS-ID226
Rolling axles RNS-ID226
  • All stainless steel open structure, scale body electrochemically polished
  • Scale body surface roughness Ra<0.8um, No bacterial residues
  • WB702SH Stainless Steel Laser Welded Sealed Load cell, High IP Class
  • Suitable for food, pharmaceutical, chemical industry requiring water flushing applications
  • ID226SS2 Stainless steel indicator, standard configuration: RS232+485 Communication serial port
  • ID226 Powered by lead-acid batteries: 4AH, It works for 24 hours on a single charge
  • FW650 Stainless steel Harsh Indicator, standard configuration: RS232+485 Communication serial port
  • Example of configuration:
  • BWA RKS-4050-N-0060-660-ID226
0
0
Bench Scale ID226W Portable Bluetooth Balance
Bench Scale ID226W Portable Bluetooth Balance
  • b-bit green display, 200,000 display divisions
  • 3000 Certified accuracy, supports 3-segment display division value
  • Lithium battery power supply, a single full charge can work for 30h
  • Standard configuration: scale x 1 RS232 Serial port communication; supports Bluetooth communication interface
  • Convenient to carry
0
0
ID226 , SS2 Body
ID226 , SS2 Body
0
0
FW650 , Harsh (Standard Dual-scale Batching Workstation WB-MFS-B-ST-D)
FW650 , Harsh (Standard Dual-scale Batching Workstation WB-MFS-B-ST-D)
  • 7 "or 13" LCD color touch screen, supports switching between Chinese and English
  • Supports MODBUS-RTU and MODBUS-TCP as standard
  • PLC communication interface option Unlimited communication interface I/O (input/output options) Multiple calibration modes Supports applications Three-level authority management
  • Modify the log
  • The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
  • 4 serial ports
  • 2 LAN ports (built-in switch function)
  • 32G memory card
  • 4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
  • PROFIBUS-DP (Siemens PLC)
  • CC-link (Mitsubishi PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • scale x 1 4-20 mA (16-bit precision DAC)
  • scales x 2 4-20 mA (16-bit precision DAC)
  • WIFI wireless
  • 4G wireless (Huawei 4G module)
  • In x 4 / OC Out x 6
  • In x 8 / OC Out x 12
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Industry 4.0 smart weighing and labeling, MES terminal version
  • Manual batching version
  • Automatic batching version
  • Filling version
  • Intelligent shelves management version
  • Material tower weighing IoT version
  • Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
  • Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
  • Standard configuration:
0
0
