ID226
WEBOWT
ID226
Product Features
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons
Relay output board
Ethernet communication board
Bluetooth communication board
WIFI communication board
Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method

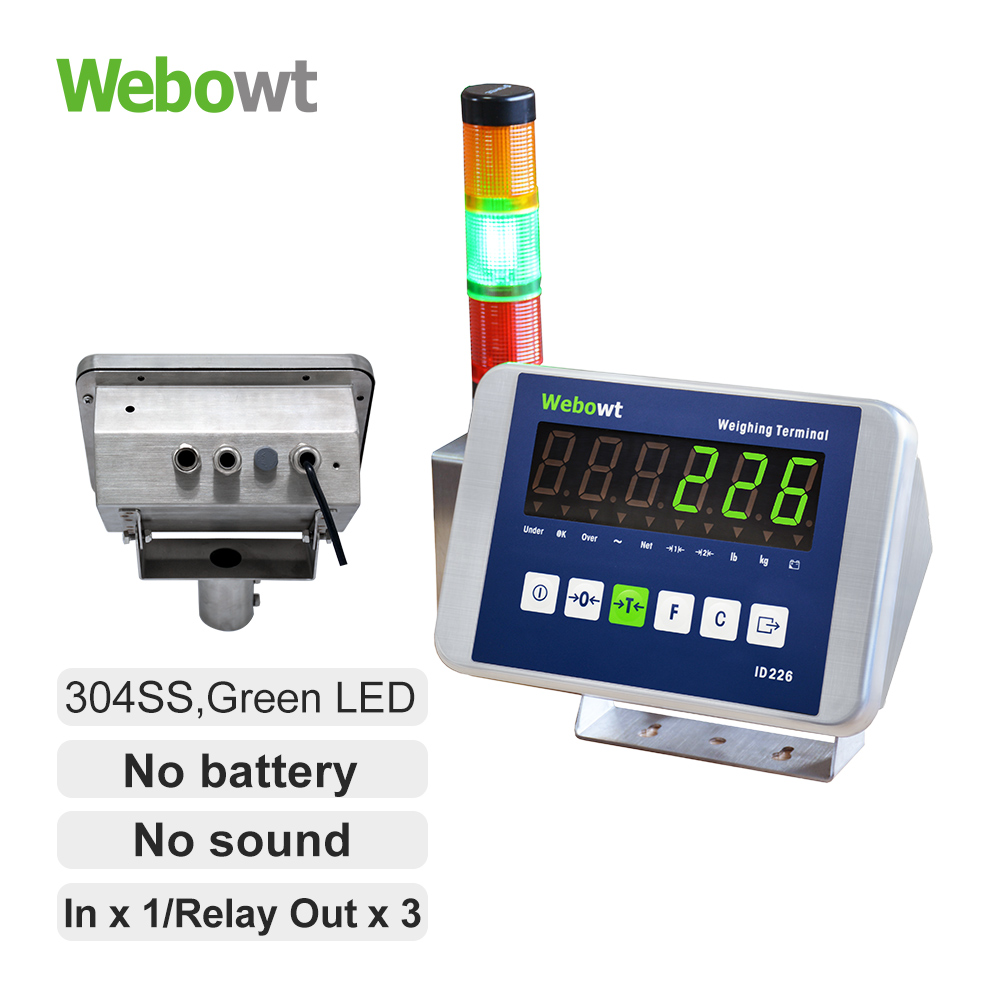

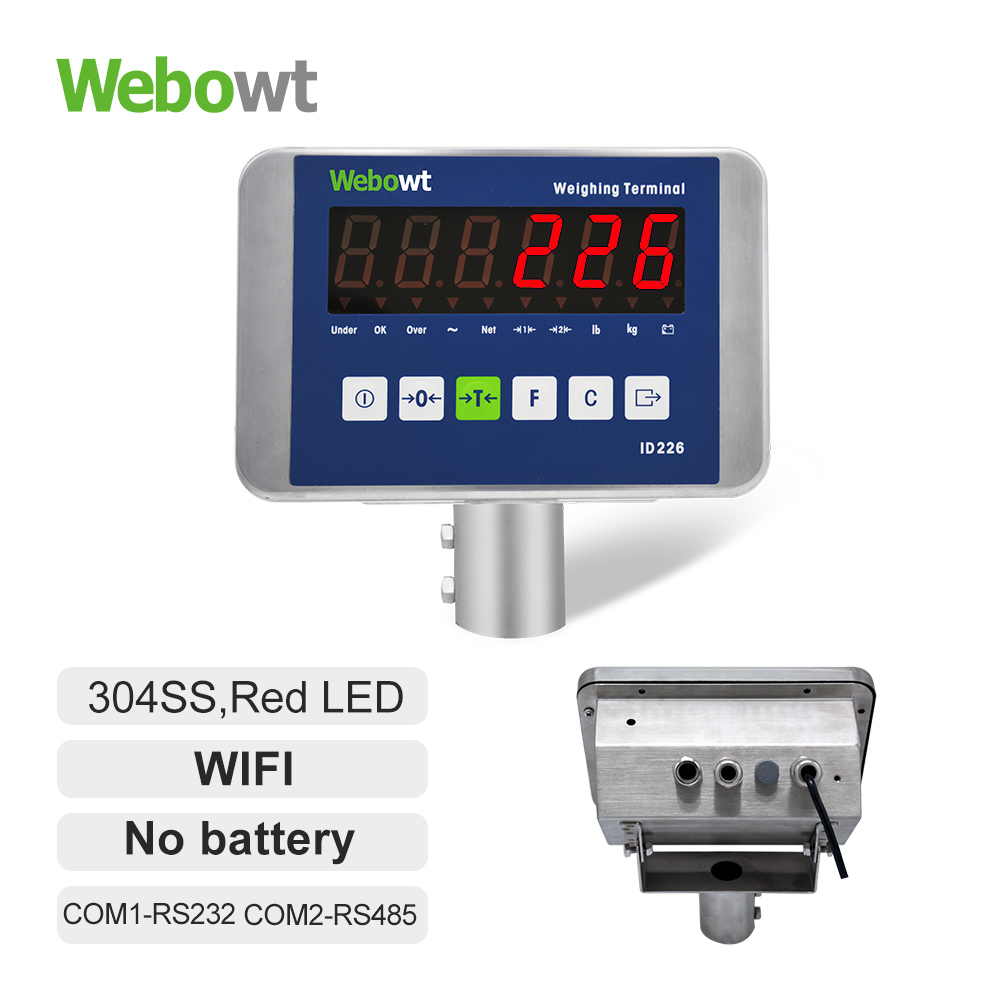

304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).
Product Selection Configuration
| Indicator Model Number | housing Type | Scale Interface | Store | PLC Interface | Wireless Communication | I/O Interface | Display | Application Sub-ltems | Language | Power Supply |
| FW650 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | G |
| FW650 | 0:Stainless steel desktop (dustproof) 1:Stainless steel round pipe bracket 2:Stainless stee square pipe bracket 3:Industrial Contro Chassis 4:Aluminum explosion proof without contro button 5:Aluminum explosion proof band with control button 6:Panel type 7:Stainless steel explosion-proof without contro button 8:Stainless stee explosion-proof band with control button | 0:No analog scale input 1:Scalex1 analog scale interface 2:Analog scalex2 interface 3:Scalex1 RS485 digital scale 4:Scalex1 CAN digital scale 5:Scalex1 analog scale+ scale x1 RS485 digital scale 6:Analog scalex2 +scalex1 RS485 digital scale 7:Scalex1 analog scale+ scalex1 CAN digital scale 8:Analog scalex2 +scalex1 CAN digital scale | 0:32G memory card 1:32G memory card +SATA hard disk | 0:None A:Scalex14-20mA output B:Scalesx2 4-20mA output C:CC-LINK E:EtherNet/IP F:PROFINET G:EtherNet/IP+ scale x14~20mA output H:PROFINET+scale x 14-20mA P:PROFIBUS communication interface T:EtherCAT U:EtherCAT+scale x14-20mA K:CC LINK IE FB Q:CC LINK IE FB+scalex1 4-20mA | 0:None W:WIFI G:4G 2:WIFI+4G | 0:None 1:Inx4/Out x 6 2:Inx8/Out x 12 | 0:7-inch color LCD with touch screen 3:Digital tube display 4:13-inch LCD touchscreen | 0:MES terminal 1:Manual Batching 2:Truck scale 3:Shelves management 4:Tower weghing 5:Filling version 6:Batching version F:Customized application | 0:Chinese 1:English | A: 110/220VAC no power cable(panel type only) G: 110/220VAC GB plug (dustproof only) U: 110/220VAC UK plug (dustproof only) D:24VDC no power cable |
