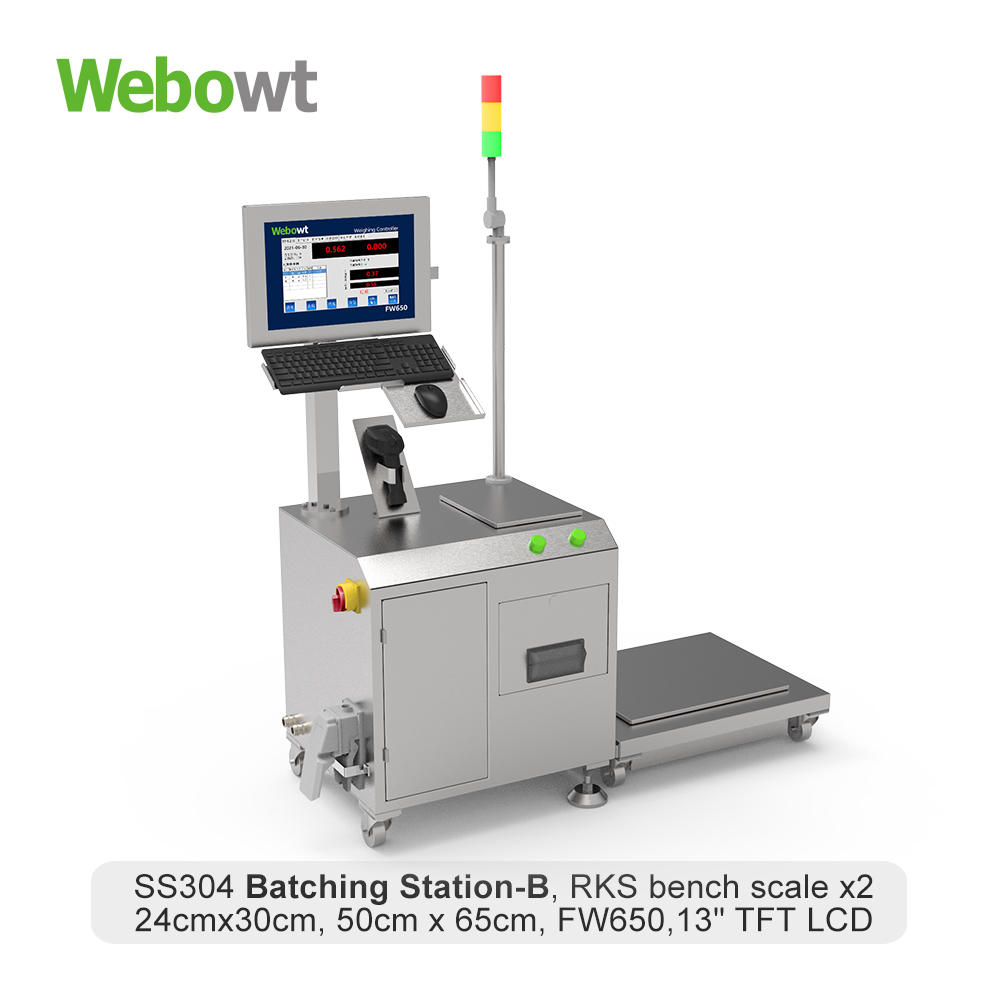

FW650 , Harsh (Standard Dual-scale Batching Workstation WB-MFS-B-ST-D)

7 "or 13" LCD color touch screen, supports switching between Chinese and English
Supports MODBUS-RTU and MODBUS-TCP as standard
PLC communication interface option Unlimited communication interface I/O (input/output options) Multiple calibration modes Supports applications Three-level authority management
Modify the log
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
4 serial ports
2 LAN ports (built-in switch function)
32G memory card
4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
PROFIBUS-DP (Siemens PLC)
CC-link (Mitsubishi PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
scale x 1 4-20 mA (16-bit precision DAC)
scales x 2 4-20 mA (16-bit precision DAC)
WIFI wireless
4G wireless (Huawei 4G module)
In x 4 / OC Out x 6
In x 8 / OC Out x 12
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Industry 4.0 smart weighing and labeling, MES terminal version
Manual batching version
Automatic batching version
Filling version
Intelligent shelves management version
Material tower weighing IoT version
Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
Standard configuration:

Quantity:
Non-Explosion Proof Batching Workstation - Indicator:	304 Stainless steel dustproof, 7-inch display, equipped with tricolor alarm light, double scale 304 Stainless steel dustproof, 7-inch display, equipped with tricolor alarm light, single scale 304 Stainless steel dustproof, 13-inch display, equipped with tricolor alarm light, double scale 304 Stainless steel dustproof, 13-inch display, equipped with tricolor alarm light, single scale
Accessories:	Software V1.0 for FW650 , Manual batching version TSC T-4502E Label printer, with a thermal transfer ribbon Honwywell , OH4502-1-1USB , Wireless handheld barcode scanner Explosion-proof handheld terminal with built-in software for material requisition and feeding confirmation management
Availability:





Inquire Add to Basket

Order No.: 86500032

Model No.: FW650220002410G

Non Explosion Proof Manual Batching Station,

FW650,SS304, Harsh Wall housing，Analog Scale X2，

USBX4, Serial port X4, INX8, OUTX12，13" TFT LCD,

RMSB App.,

220VAC

WEBOWT Manual Batching System Non Explosion Proof

Features and Applications:

Basic data management of batching raw materials;
Confidentiality and management of basic formula;
Production task management and issuance;
Material identification and confirmation;
Strict monitoring of manual batching process, to solve problems of wrong and inaccurate material feeding;
Traceability of batching process;
Traceability of downstream batching by batching label printing;
Collection, statistics and analysis of batching data;
User authority management
