ID260H0EA00000G
WEBOWT
8260001
ID260
Product Features

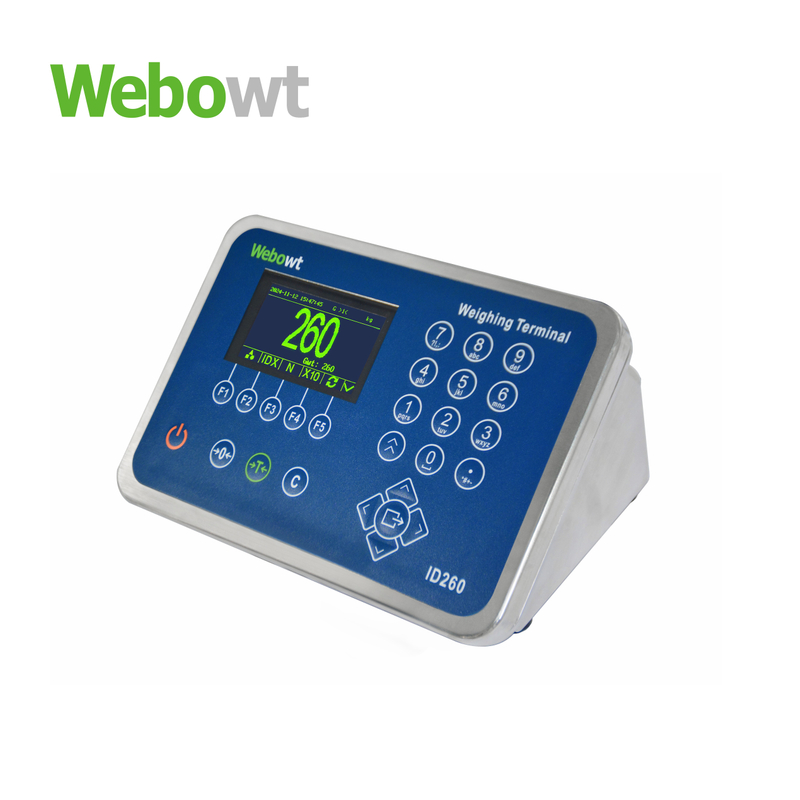

ID260 general industrial weighing instrument, all stainless steel shell, suitable for a variety of harsh industrial environments, a variety of installation forms to choose from, new OLED display, graphical display, support Chinese and English and other Chinese, rich communication interface, can realize the transmission of transaction data through serial port, USB and Ethernet, and can be connected to the MES system. In addition to basic weighing applications, it also provides a wide range of applications such as truck scale weighing, counting, checkweighing, animal weighing, etc., which are widely used in food, pharmaceutical, chemical, electronics and other industries.
All stainless steel shell, IP66/IP67 protection level, to meet a variety of harsh industrial application scenarios
Green OLED display, graphical display, support Chinese and English and other Chinese, large font display
The keyboard is equipped with independent power on/off, 9 function keys, 4 guide keys and 12 alphanumeric keys, supporting Chinese, English and numeric input
Analog platform with up to 6 x 150 ohm analog sensors
It is equipped with COM1-RS232, COM2-RS485, USB interface, optional network port and WiFi component
I/O: 4 in and 6 out components are optional
Built-in SD card option
Power supply: 100-240VAC AC power supply or built-in rechargeable battery
Mounting bracket: The bracket is optional, and the instrument supports desktop, square tube column installation, round pipe column installation and wall bracket installation
It supports connecting printers and scanners, and can choose from three label printing modes: normal mode, counting mode, and checkweighing mode
Product Selection Configuration
| Instrument model | Housing Type | Display | Scale Interface | PLC interface | I/O options | SD card | Application sub items | Language | Power Supply |
| ID260 | XX | X | X | X | X | X | X | X | X |
| ID260 | HO:General type dustproof desktop ROnormal type desktop round tube bracket SO:normal square tube bracket D0:General type case scale mounting H1:Hygienic dustproof desktop R1:Hygienic desktop round tube bracket S1:Hygienic square tube bracket D1:Hygienic case scale installation | E:OLED | 1:analog scalex1 | 0:RS232+RS485 2:RS232+RS485+WIFI | 0:None 1:INX4/OUTX6 2:INX4/OUTX6+ Sound and light alarm lights | 0:None | 0:Basic applications | 0:Chinese 1:Multilingua Export | G:220VAC,wihout battery 2:220VAC+battery |
| 1:RS232+RS485+USBX1 3:RS232+RS485+USBX1+WIFI 4:RS232+RS485+USBX1+LANX1 5:RS232+RS485+USBX2+LANX1 | 1:32G |
