ID511SE0M00APRO(220VAC)/ID511SE0M00DPRO(24VDC)
WEBOWT
85110PU(220VAC)/85110PW(24VDC)

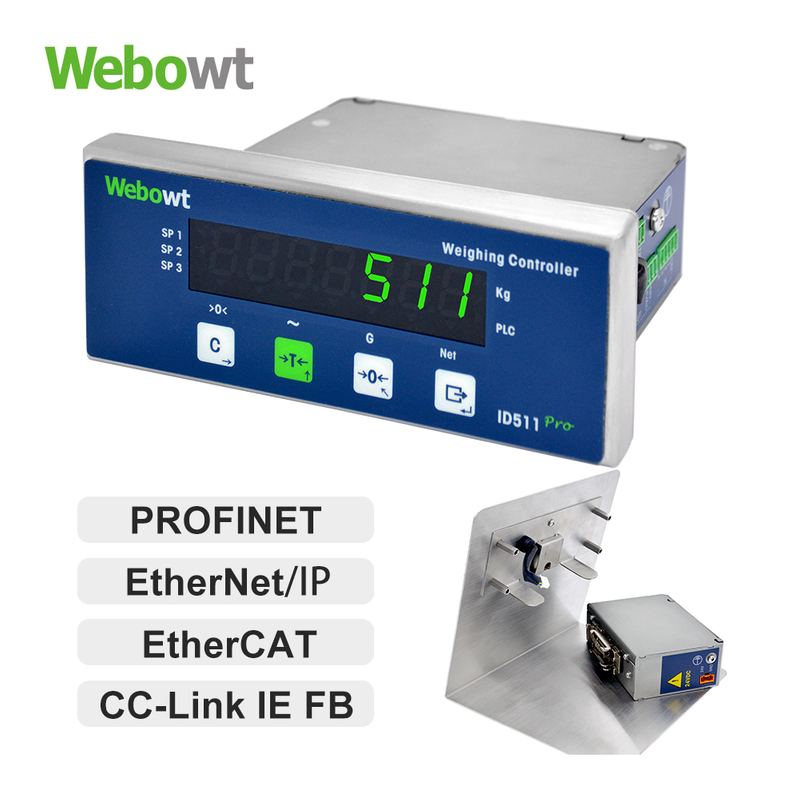

ID511 Pro
Product Features
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
CC-link IE FB (Mitsubishi PLC)
EtherCAT (HIAS PLC)
Optional I/O (input/output)
In x 4 / MOS Out x 6.
Multiple calibration modes
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Calibration with material
Application supports
Basic weighing version
Supports dual-speed preset point control and 8 simple comparison outputs
Lower/upper limit material level detection
Product Selection Configuration
| lndicator Model Number | Shell Type | Hardware Sub-item | I/O Option | PLC Interface | Application Sub-items | Language | Power Supply | ||
| ID511 | S | L | 0 | F | 0 | 0 | A | PRO | |
| ID511 | S:Panel type (compatible with IND331P,IND360P) H:Dustproof type D:DIN type | L:Serial port x1 RS232/485,2 LAN ports,1 high precision AD | 0:None 3:In x4/ MOS Out x6 | E:EtherNet/P F:PROFINET T:EtherCAT K:CC-LINKIE FB | 0:Basic application | 0:Chinese 1:English | A:A110/220VAC no power cable G:110/220VAC GB plug U:110/220VAC UK plug D:24VDC no power cable | Enhanced version | |
| E:Serial port x1 RS232/485,1 LAN port,1 high precision AD | M:MODBUS-TCP | ||||||||
Product Features
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
CC-link IE FB (Mitsubishi PLC)
EtherCAT (HIAS PLC)
Optional I/O (input/output)
In x 4 / MOS Out x 6.
Multiple calibration modes
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Calibration with material
Application supports
Basic weighing version
Supports dual-speed preset point control and 8 simple comparison outputs
Lower/upper limit material level detection
Product Selection Configuration
| lndicator Model Number | Shell Type | Hardware Sub-item | I/O Option | PLC Interface | Application Sub-items | Language | Power Supply | ||
| ID511 | S | L | 0 | F | 0 | 0 | A | PRO | |
| ID511 | S:Panel type (compatible with IND331P,IND360P) H:Dustproof type D:DIN type | L:Serial port x1 RS232/485,2 LAN ports,1 high precision AD | 0:None 3:In x4/ MOS Out x6 | E:EtherNet/P F:PROFINET T:EtherCAT K:CC-LINKIE FB | 0:Basic application | 0:Chinese 1:English | A:A110/220VAC no power cable G:110/220VAC GB plug U:110/220VAC UK plug D:24VDC no power cable | Enhanced version | |
| E:Serial port x1 RS232/485,1 LAN port,1 high precision AD | M:MODBUS-TCP | ||||||||
