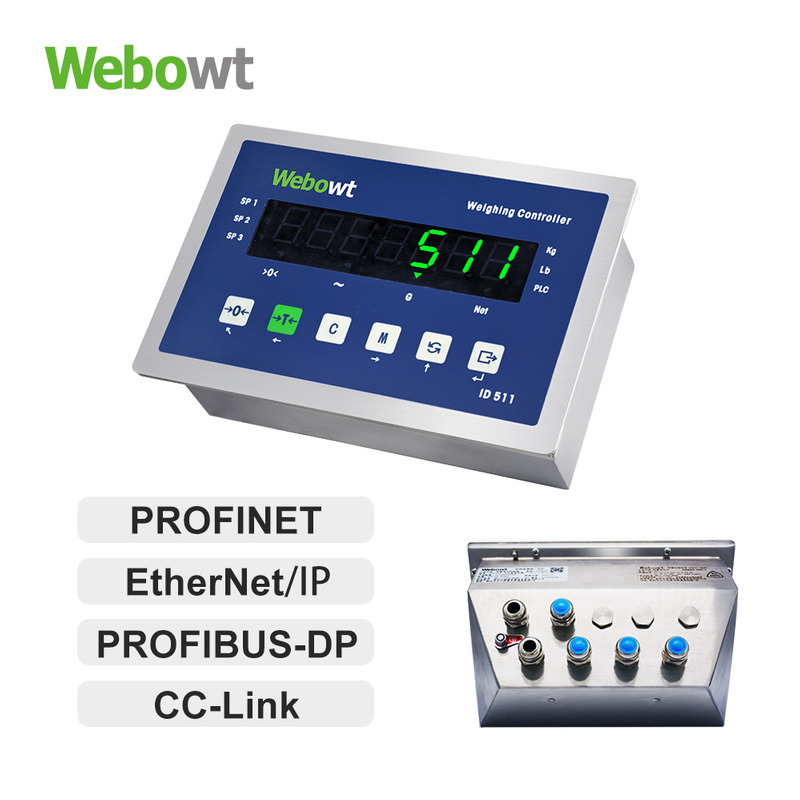

ID511HC2000G (220VAC) / ID511HC2000D (24VDC)
WEBOWT
851101H(220VAC) / 851104N(24VDC)
ID511
Product Features
7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
CC-Link (Mitsubishi PLC)
4-20mA (16-bit precision DAC) x 1
4-20mA (16-bit precision DAC) x 2
I/O (input/output options)
In x 8 / OC Out x 12
In x 8 / Relay Out x 12
Multiple calibration modes
Supports up to 5-point calibration
Calibration without weights
Remote calibration through PLC communication interface
Application supports
Basic weighing version
Supports dual-speed preset point control and 8 simple comparison outputs
Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
Product Selection Configuration
| Indicator Mode Number | Shell Type | Hardware | I/O Option | PLC Interface | Application Sub-ltems | Language | Power Supply | ||
| ID511 | P | J | 1 | 0 | 1 | 0 | A | ||
| ID511 | P:Panel type D:DIN Type | J:Serial ports x2(RS232 +RS232/485),high precision version | 0:None 1:Inx8/OC Out x 12 2:Inx8/Relay Out x12 | 0:None A:Scale x14-20mA output B:Scales x24-20mA output C:CC-LINK D:DeviceNet E:EtherNet/IP F:PROFINET G:EtherNet/IP+scale x14-20mA H:PROFINET+scale x14-20mA P:PROFIBUS-DP R:ABRIO (DH+) T:EtherCAT U:EtherCAT+scae x14-20mA V:PROFIBUS-DP+scalex14-20mA | 0:Basic application | 0:Chinese 1:English | A:110/220VAC (no power cable) D:24VDC (no power cable) | ||
| K:LAN port and serial portsx2 (LAN+RS232+RS485), high precision version | 0:None | ||||||||
