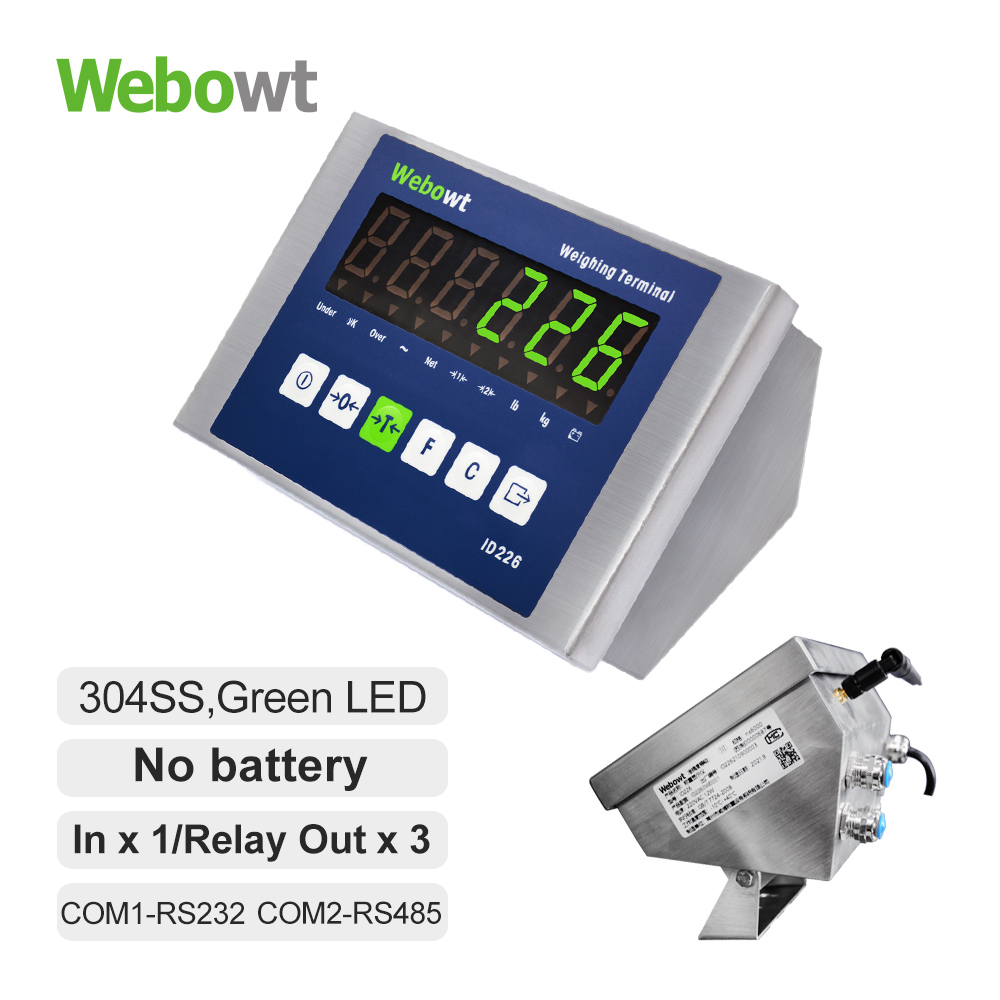

ID226, SS1 Body

LED Display Color:
Shell Type:
Hardware:
Battery:
Language:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ID226

  • WEBOWT

  • 8226008

  • ID226

Product Features

8661692584003982

6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.


Optional supports for add-ons

  • Relay output board

  • Ethernet communication board

  • Bluetooth communication board

  • WIFI communication board

Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.


Installation method

  • 304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).



Product Selection Configuration

8661692584003982

Indicator
Model

Shell Type Hardware Battery Printer Language Display
ID226 0 A 0 0 0 1
ID226 0:Desktop SS1 housing
1:SLIM square column bracket
2:SLIM round pipe bracket
3:ABS housing round pipe bracket
4:Desktop SS1 housing
5:SS2 housing round pipe bracket
6:SS2 housing square column bracket
7:SS1 housing round pipe bracket
8:SS1 housing square column bracket
9:ABS housing square column bracket
A:RS232+RS485
1:RS232+RS485+Relay
T:RS232+RS485+LAN
W:RS232+RS485+WIFI
Y:RS232+RS485+Bluetooth
U:RS232+RS485+LAN+Relay
V:RS232+RS485+WFI+Relay
X:RS232+RS485+Bluetooth+Relay
0:None
1:NiMH battery
(SLIM version)
2:Lead-acid battery
0:None 0:Standard application
1:Export version
2:Livestock  scale  without
card  reader,IP69K
3Livestock scale with card
reader,IP69K
0:Red
1:Green
