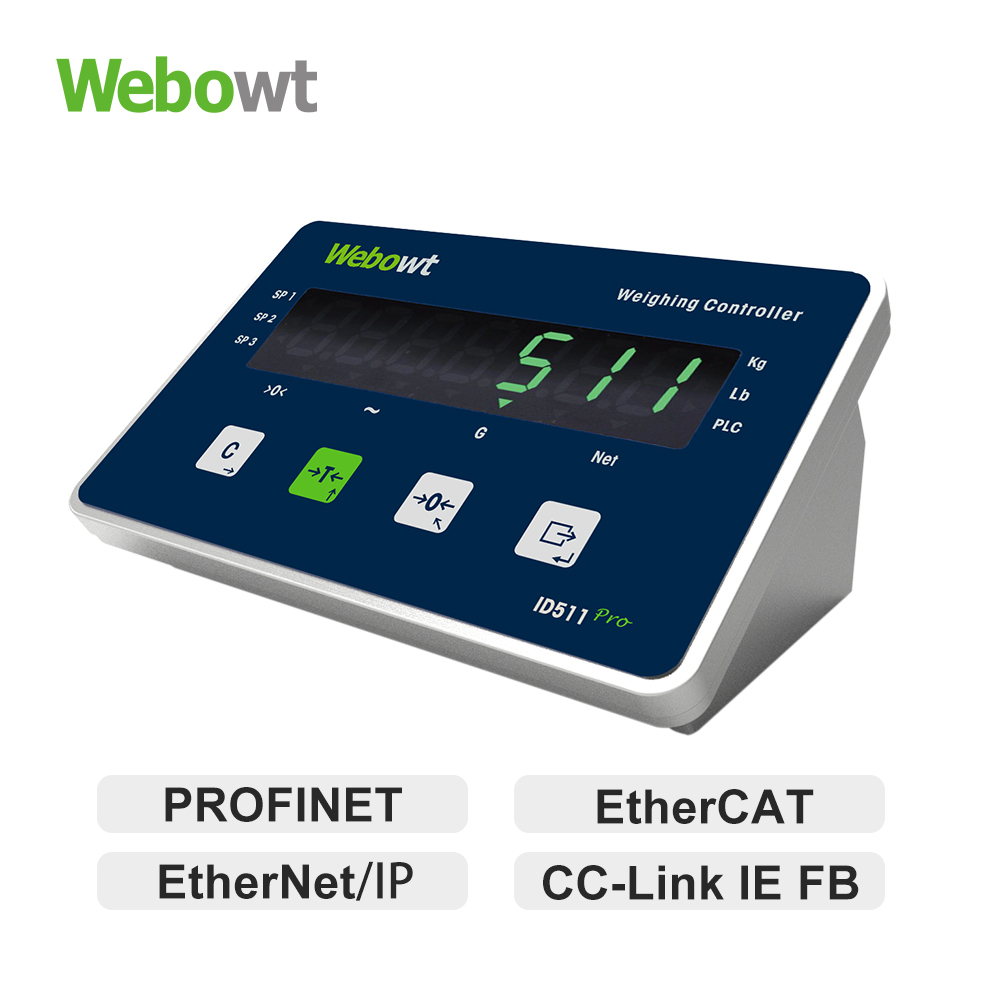

7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface - PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
- EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
- CC-link IE FB (Mitsubishi PLC)
- EtherCAT (HIAS PLC)
Optional I/O (input/output) Multiple calibration modes - Supports up to 5-point weight calibration
- Calibration without weights
- Remote calibration through PLC communication interface
- Calibration with material
Application supports - Basic weighing version
- Supports dual-speed preset point control and 8 simple comparison outputs
- Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
