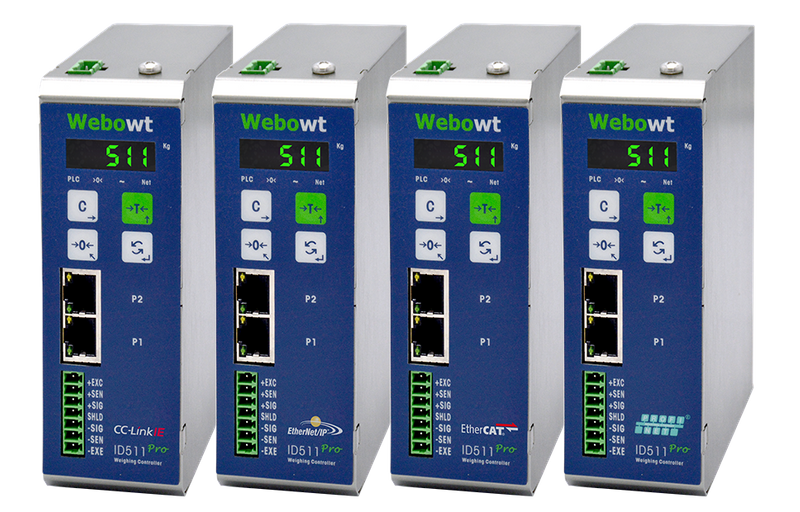

ID511Pro , DIN Rail

7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Certification: CPA 6000e, division up to 150,000
Standard with serial port x 1 (RS232/485), 2 LAN ports, and 1 high precision weighing AD
Standard supports for MODBUS-RTU and MODBUS-TCP (for single LAN port version only)
Optional PLC communication interface
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC), certified by siemens PN consistency test
  • EtherNet/IP (dual LAN ports, built-in switch, rockwell PLC, Delta PLC)
  • CC-link IE FB (Mitsubishi PLC)
  • EtherCAT (HIAS PLC)
Optional I/O (input/output)
In x 4 / MOS Out x 6.
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
  • Calibration with material
Application supports
  • Basic weighing version
  • Supports dual-speed preset point control and 8 simple comparison outputs
  • Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W
Hardware:
RS232/485 , LAN X 2 , 7500e
RS232/485 , LAN X 1 , 7500e
I/O Option:
None
In X 4/ MOS Out X 6
PLC I/F Option:
EtherNet/IP
PROFINET
EtherCAT
CC Link IE FB
MODBUS-TCP
Application:
Basic
Power Supply:
110/220VAC (No Cable)
24VDC (No Cable)
Availability:
Quantity:
Inquire Add to Basket
