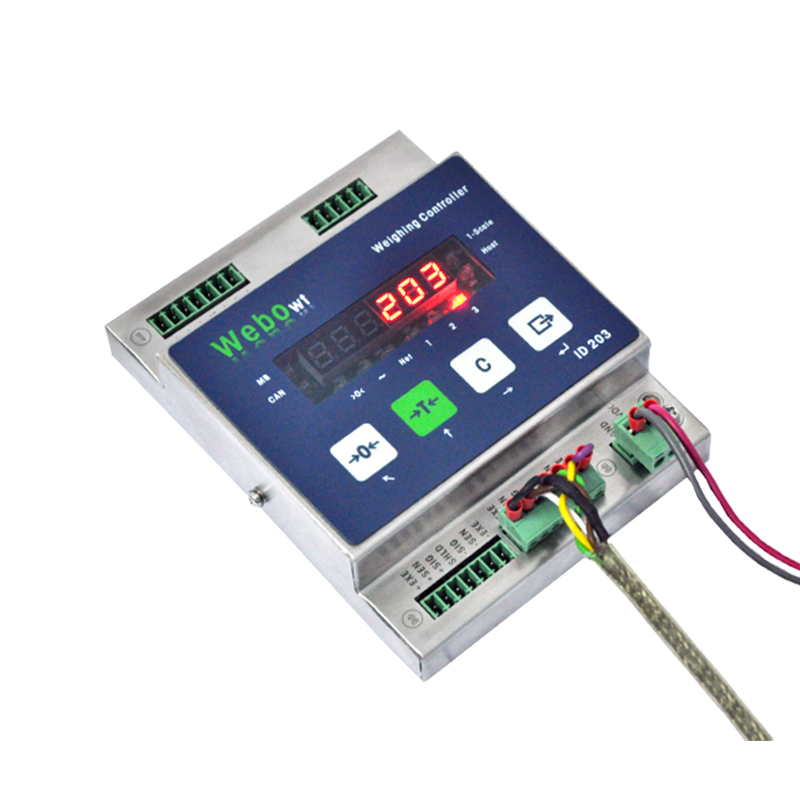

ID203 , DIN

6-bit LED display
Supports the access of 1, 2 and 3 analog scales, and each channel supports 4 load cells input at most.
Certification: CPA 3000e, division up to 60,000
Standard with serial port x 1 RS232/485
Standard supports MODBUS-RTU
  • Multiple calibration modes
  • Supports up to 2-point weight calibration
  • Calibration without weights
  • Remote calibration via MODBUS-RTU communication interface
Working power supply: DC 24VDC, the maximum power consumption of the complete machine is less than 6W;
Installation method
  • Standard industrial DIN

Hardware:
RS232/485
RS232/485×1+CAN
Load Cell Interface:
Scale x 1 interface
Scales x 2 interface
Scales x 3 interface
PLC I/F Option:
None
Application:
Basic application of weighing
Special version for down filling machine
Force measurement application
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ID203

  • WEBOWT

  • 855000K

  • ID203

WEBOWT ID203 Configuration Chart
