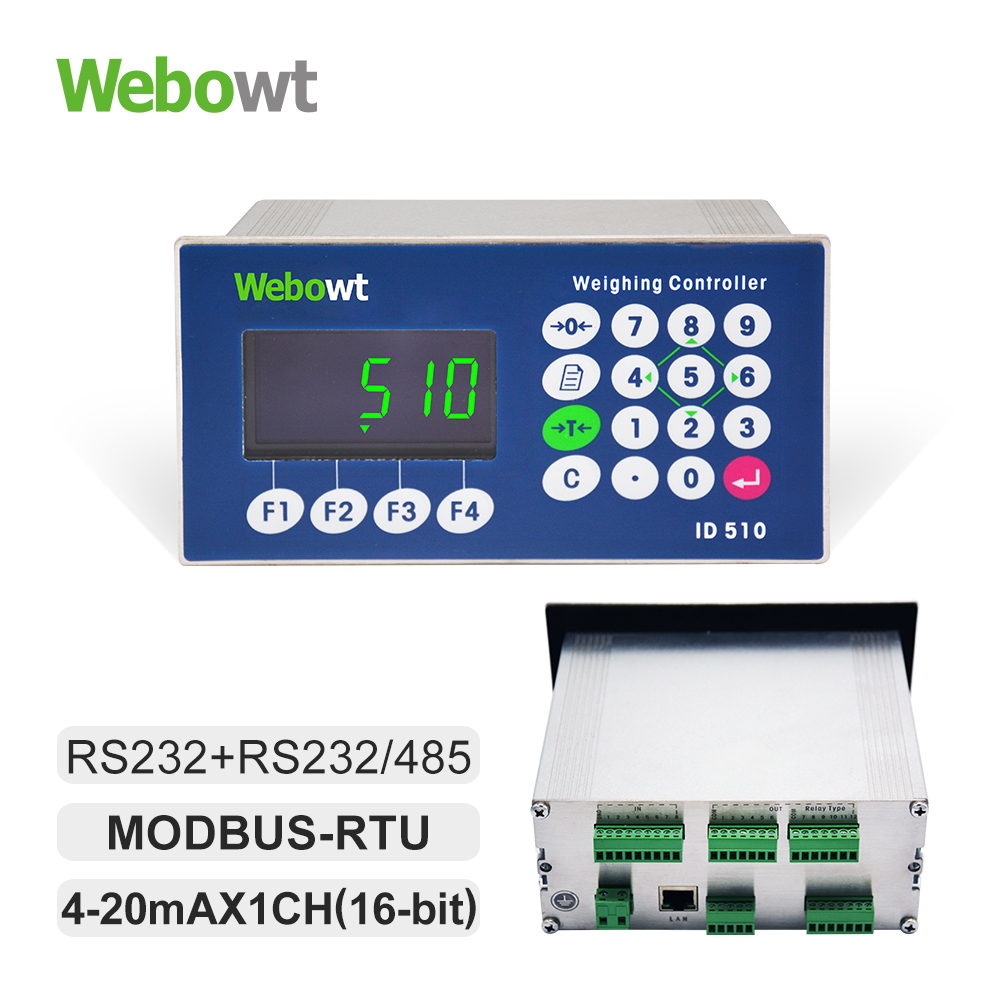

ID510, Panel (Bagging Version)

2.7-inch OLED dot matrix graphic display, supports switching between Chinese and English
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
OIML & CE certificates
Standard serial ports x 2 RS232 + RS232/485, or serial ports x 2 RS232 + RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
Optional PLC communication interface
PROFIBUS-DP (Siemens PLC) • CC-Tink (Mitsubishi PLC)
  • scale x 1 4-20mA (16-bit precision DAC) • scales x 2 4-20mA (16-bit precision DAC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
Optional I/O (input/output)
  • In x 8 / OC Out x 12
  • In x 8 / Relay Out x 12
Multiple calibration modes
  • Supports up to 5-point code-breaking calibration • calibration without weights
  • Remote calibration through PLC communication interface
Application supports
  • Basic weighing version/bagging version/checkweighing version/filling version/batching version
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
Hardware:
RS232+RS232/485, Analog Scale(6000e)
RS232+RS232/485, Analog Scale(6000e), High Precision
LAN port x 1+RS232+RS485
LAN port x 1+RS232+RS485, High Precision
I/O Option:
None
In x 8 / OC Out x 12
In x 8 / Relay Out x 12
In x 8 / MOS Out x 12
PLC I/F Option:
None
4-20mA X 1
4-20mA X 2
CC-Link
DeviceNet
EtherNet/IP
PROFINET
PROFIBUS DP
EtherNet/IP + 4-20mA X 1
PROFINET + 4-20mA X 1
PROFIBUS DP + 4-20mA X 1
EtherCAT
EtherCAT + 4-20mA X 1
CC Link IE FB
Application:
Bagging Version
Power Supply:
110/220VAC (No Cable)
24VDC (No Cable)
Availability:
Quantity:
Inquire Add to Basket
