ID551, DIN

6-bit LED display
Supports scale x 1 analog scale input, and each channel supports up to 4 load cells input
Accuracy according to the metrological approval (CPA) 3000e, with a maximum display resolution of 60,000
Standard with serial port x 1 RS232/485
Standard supports MODBUS-RTU
Standard with In x 8 / OC Out x 8 or In x 8 / OC Out x 12
Applications
  • Basic weighing application with two-speed setpoint control (In x 8 / Out x 8 version)
  • Force application (In x 8 / Out x 8 version)
  • Bagging scale application (In x 8 / Out x 12 versions)
Working power supply:
  • DC 24VDC, the maximum power consumption of the complete machine is less than 6 W (In x 8 / Out x 8 version)
  • AC 85-264VAC, the maximum power consumption of the complete machine is less than 6 W (In x 8 / Out x 12 version)
Installation Method
  • Standard industrial DIN
Power Supply:
24VDC (No Cable)
220VAC (No Cable)
PLC I/F Option:
RS232/485+ 8IN/8OUT

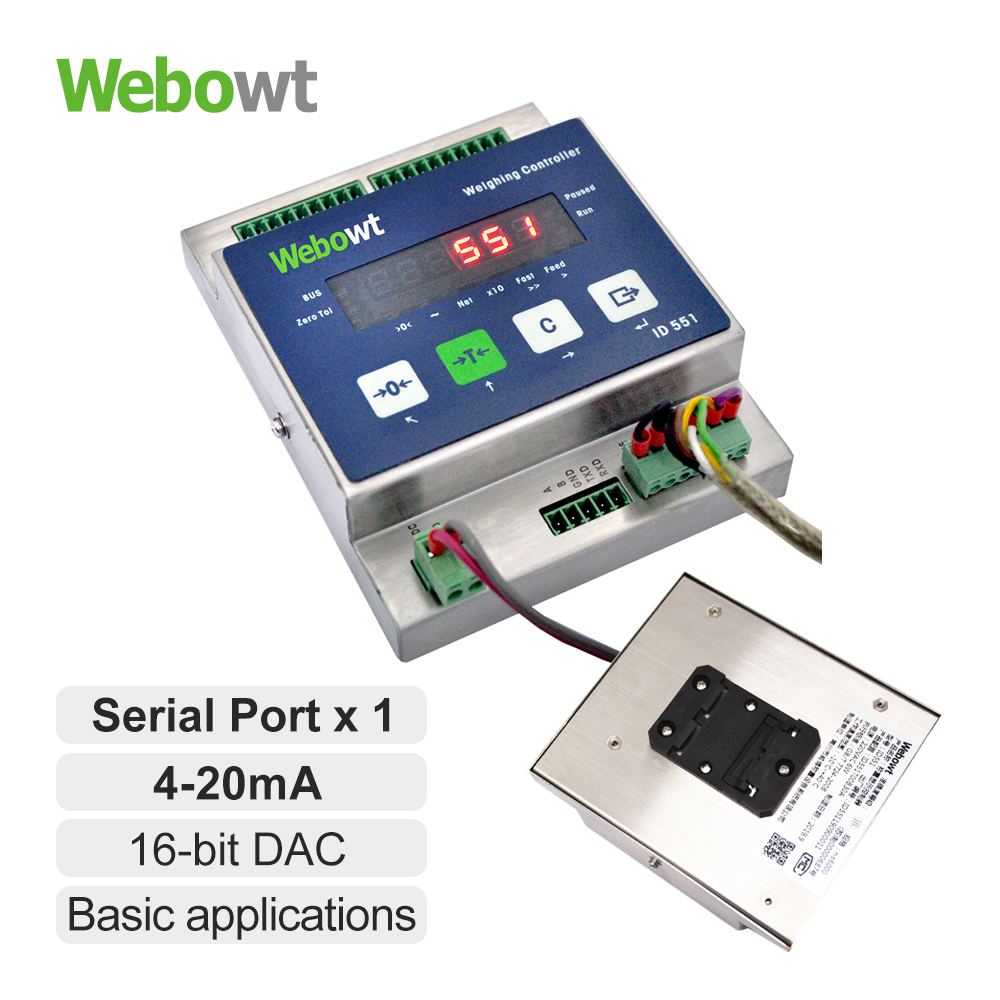

RS232/485+4-20mA

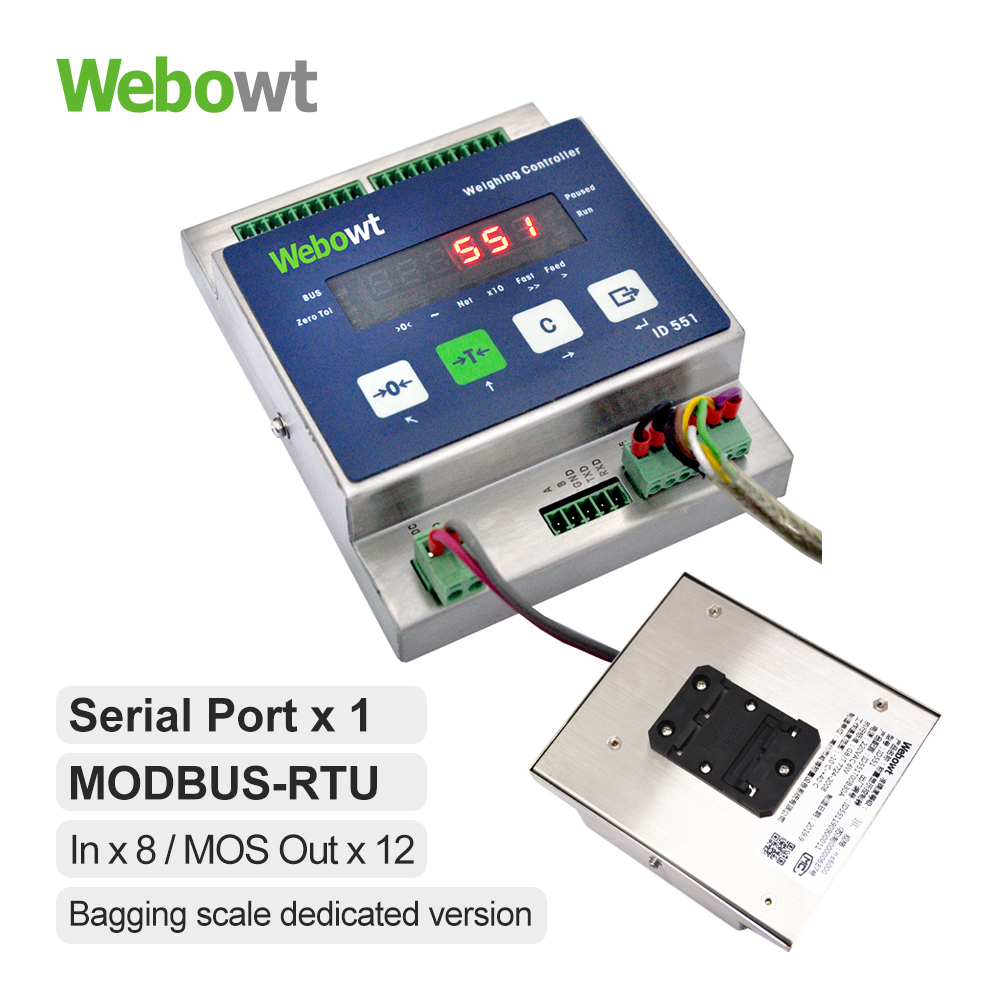

RS232/485+ 8IN/12OUT
Application:
Basic
High speed checkweighing
Force measurement
Special version of bagging scale
Rice machine customized version
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ID551T00C30-HMI-7.0

  • WEBOWT

  • 85510F2

  • ID551

ID551 Configuration Chart
