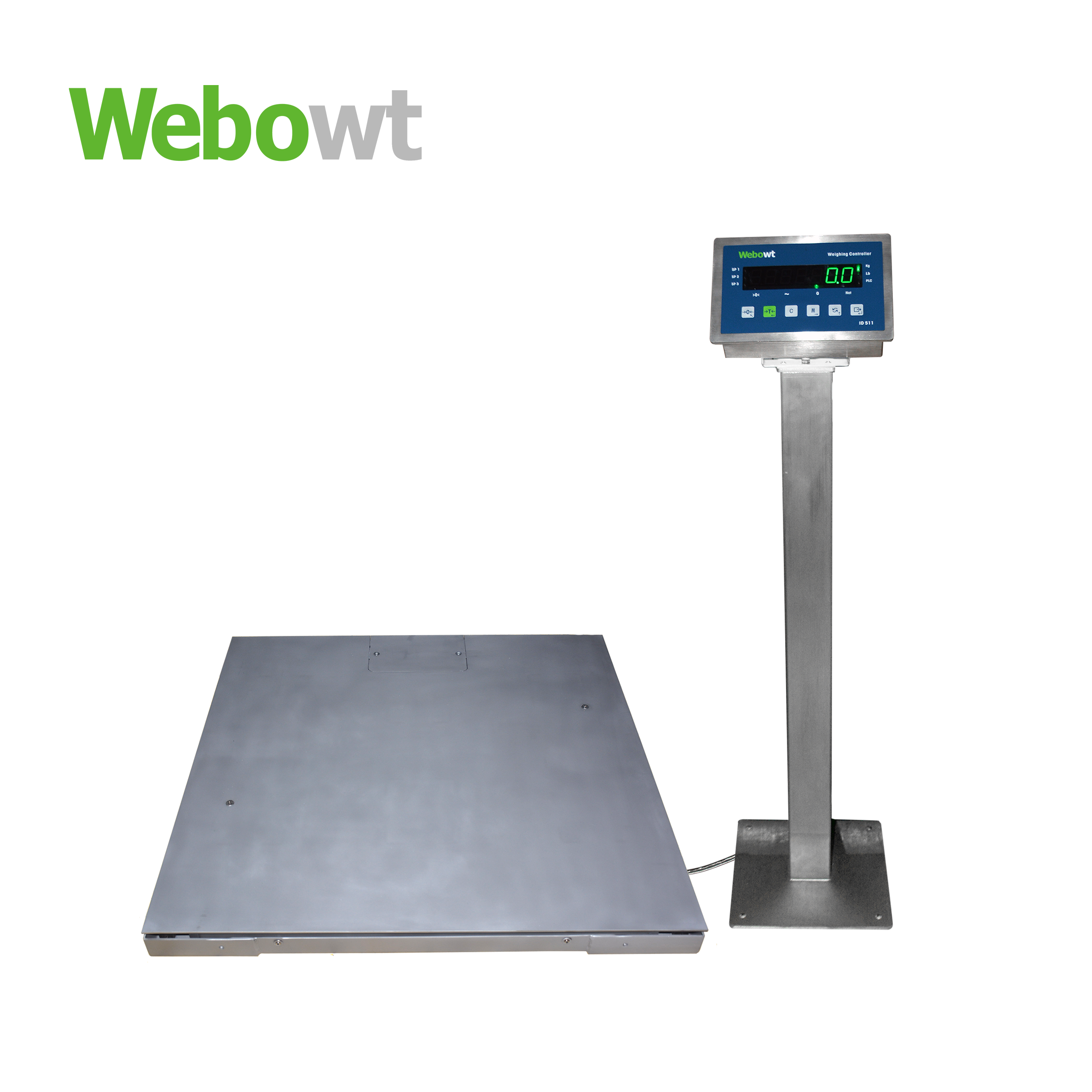

FWD PHS Medium-Precision Digital Floor Scale

Features and uses:
• CAN interface high-speed and high-precision digital load cells
• Equipped with fault self-diagnosis function
• Double layer structure electronic platform scale, with various dimensions and weighing capacity
• Equipped with ID511 high-precision weighing indicator to meet the weighing accuracy requirements
• Widely used in various industrial occasions
• Stable, reliable, accurate in long-term use, accessories configuration flexible and convenient

Quantity:
Maximum capacity/Verification division value:	300kg/0.05kg 500kg/0.1kg 600kg/0.1kg 1t/0.2kg 1.2t/0.2kg 1.5t/0.2kg 2t/1kg 3t/0.5kg
Maximum Capacity:	60×60cm (300kg/500kg/600kg) 80×80cm(300kg/500kg/600kg/1000kg/1200kg/1500kg/2000kg/3000kg) 100×100cm (300kg/500kg/600kg/1000kg/1200kg/1500kg/2000kg/3000kg) 120×120cm (300kg/500kg/600kg/1000kg/1200kg/1500kg/2000kg/3000kg) 125×150cm (600kg/1000kg/1200kg/1500kg/2000kg/3000kg) 150×150cm (600kg/1000kg/1200kg/1500kg/2000kg/3000kg) 150×200cm (1500kg/2000kg/3000kg) 200×200cm (1500kg/2000kg/3000kg) 125x125(300kg/500kg/600kg/1000kg/1200kg/1500kg/2000kg/3000kg)
Pit frame (Carbon steel):	None Single pit frame (Dimensions pls contact factory)
Ramp (Carbon steel):	None Single ramp (Dimensions pls contact factory) Double ramps (Dimensions pls contact factory)
Availability:





Inquire Add to Basket

Model:
FWD PHS
Brand:
WEBOWT
Code:
510PC0000A
Floor Scales:
PHC/PHS

Product Description

Specifications and Models

Product Name	FWD PHC/PHS
Product Model	SCS -
Accuracy Class	III
Application	Safety area
Max. Capacity / Verification division value	300kg/0.05kg; 500kg/0.1kg; 600kg/0.1kg; 1t/0.2kg; 1.2t/0.2kg; 1.5t/0.2kg; 2t/0.5kg; 3t/0.5kg
Junction Box	DLJB-015-4LC
Scale Material	PHC: Carbon Steel Powder Coating; PHS: A304 Full Stainless Steel
Load Cell	PHC: WB702CR Digital Load Cell; PHS: WB702 Digital Load Cell
Scale Height	9cm
Scale Dimension (Width x Length)	Maximum Capacity
Scale Dimension (Width x Length)	300kg	500kg	600kg	1000kg	1200kg	1500kg	2000kg	3000kg
60cm x 60cm	●	●	●
80cm x 80cm	●	●	●	●	●	●	●	●
100cm x 100cm	●	●	●	●	●	●	●	●
120cm x 120cm	●	●	●	●	●	●	●	●
125cm x 125cm	●	●	●	●	●	●	●	●
125cm x 150cm			●	●	●	●	●	●
150cm x 150cm			●	●	●	●	●	●
150cm x 200cm						●	●	●
200cm x 200cm						●	●	●
Non-standard dimensions	Support non-standard size customization

PHC-PHS (2)

PHC-PHS (3)

PHS Floor Scale Medium-Precision Digital Floor Scale
