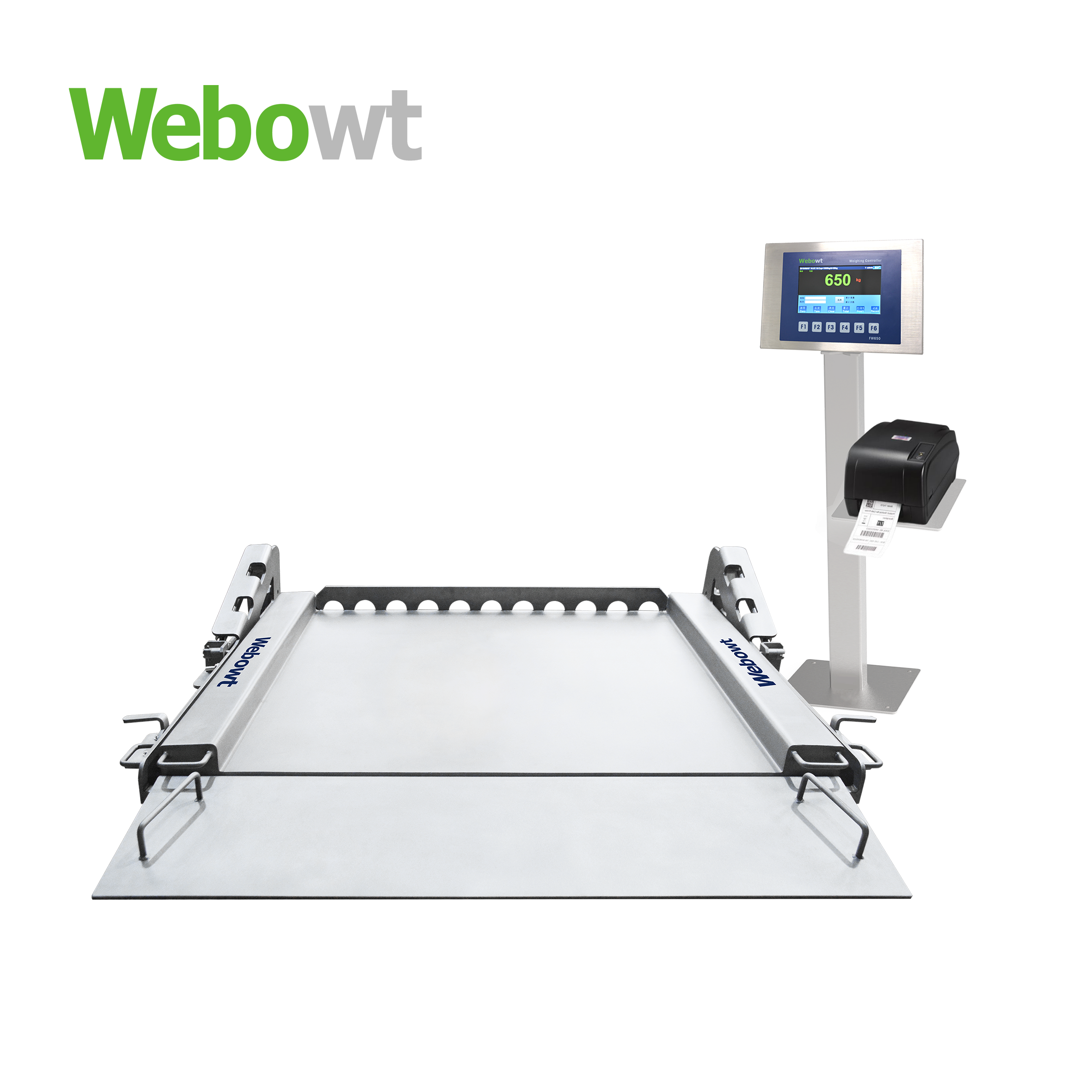

FWD PKS
WEBOWT
PKS
Product Features
Peculiarity:
A304 stainless steel, surface sprayed glass bead treatment
Open, easy-to-lift structure, easy to clean and clean
Ultra-low table design, convenient for trolley, mobile tank weighing
IP68/IP69K protection for use in wet environments
It is suitable for applications in the food, pharmaceutical, chemical industry and other industries that require washdown
Product Selection Configuration
| Product name | PKS | ||
| Product mode | SCS-□ | ||
| Accuracy level | Ⅲ | ||
| Maximum weighing /calibration division value | 300kg/0.1kg;600kg/0.2kg;1500kg/0.5kg | ||
| Junction box | A304 stainless steel,IP68 | ||
| Scale platform and slope material | A304 stainless steel,treated with glass bead spray | ||
| Load cell | WB702 stainless steel load cell | ||
| Table height above ground | 60mm | ||
| Scale table size (width xlength x height) | Specifications | ||
| 300kg | 600kg | 1500kg | |
| 800mmx800mm | ● | ● | ● |
| 1000mmx1000mm | ● | ● | ● |
| 1250mmx1250mm | ● | ● | ● |
| 1250mmx1500mm | ● | ● | ● |
| Calibration index value | 0.1kg | 0.2kg | 0.5kg |
| Environment/IP protection | Wet environment,flushable,IP68//P69K | ||
| Platform Size W(m)xL(m) | 0.8x0.8 | 1.0x1.0 | 1.25x1.25 | 1.25x1.5 |
| A(mm) | 1225 | 1425 | 1675 | 1925 |
| B(mm) | 300 | |||
| C(mm) | 1225 | 1425 | 1675 | 1675 |
| D(mm) | 1000 | 1200 | 1450 | 1450 |
| H(mm) | 240 | |||
| h(mm) | 45 | |||
