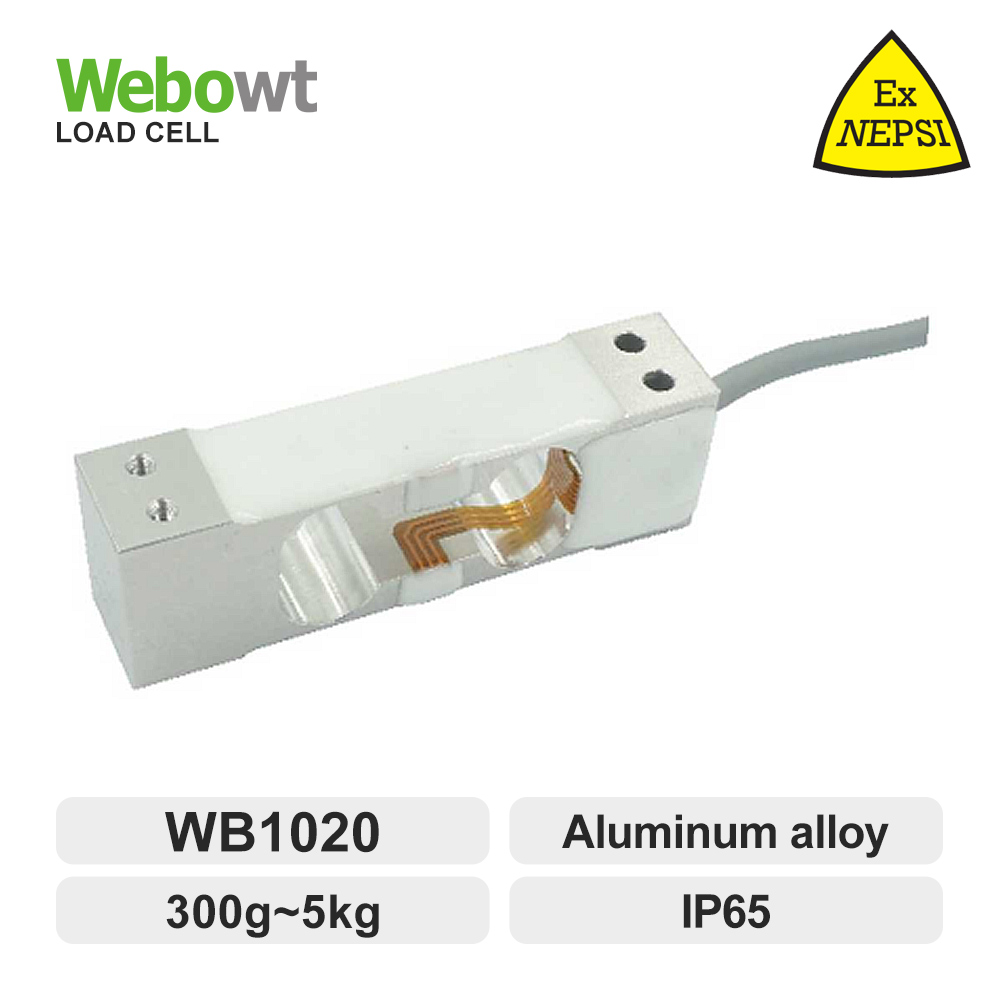

WB1020 , Load Cell 300g~5kg
WEBOWT
WB1020
Product Features
Aluminum alloy material
High precision and strong ability to resist unbalanced load
Easy to install, IP65
Suitable for electronic scales, counting scales, electronic balances and industrial weighing systems
Product Selection Configuration
Capacity | 300g,500g,1,2,3,5 kg |
Accuracy class | C3 |
Rated output | 1.0±10%mVV (300g,500g) 2.0±10%mVV(1~5kg) |
Zero balance | ±2%F.S. |
Non-linearity | 0.015%F.S. |
Hysteresis | 0.015%F.S. |
Repeatability | 0.015%F.S. |
Creep (30 min) | 0.0166%F.S. |
Temp.effect on output | 0.017%F.S./10℃ |
Temp.effect on zero | 0.02%F.S./10℃ |
Input impedance | 380±40Ω |
Output impedance | 380±40Ω |
Insulation | ≥5000MQ/100VDC |
Recommended excitation | 5-15V |
Maximum excitation | 20V |
Compensated temp range | -10-40℃ |
Operation temp range | -25-70℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ4×400mm |
Weight approx. | 0.1kg |
Material | Aluminum alloy |
IP Rating | IP65 |
Max.platform size | 200mm×200mm |
