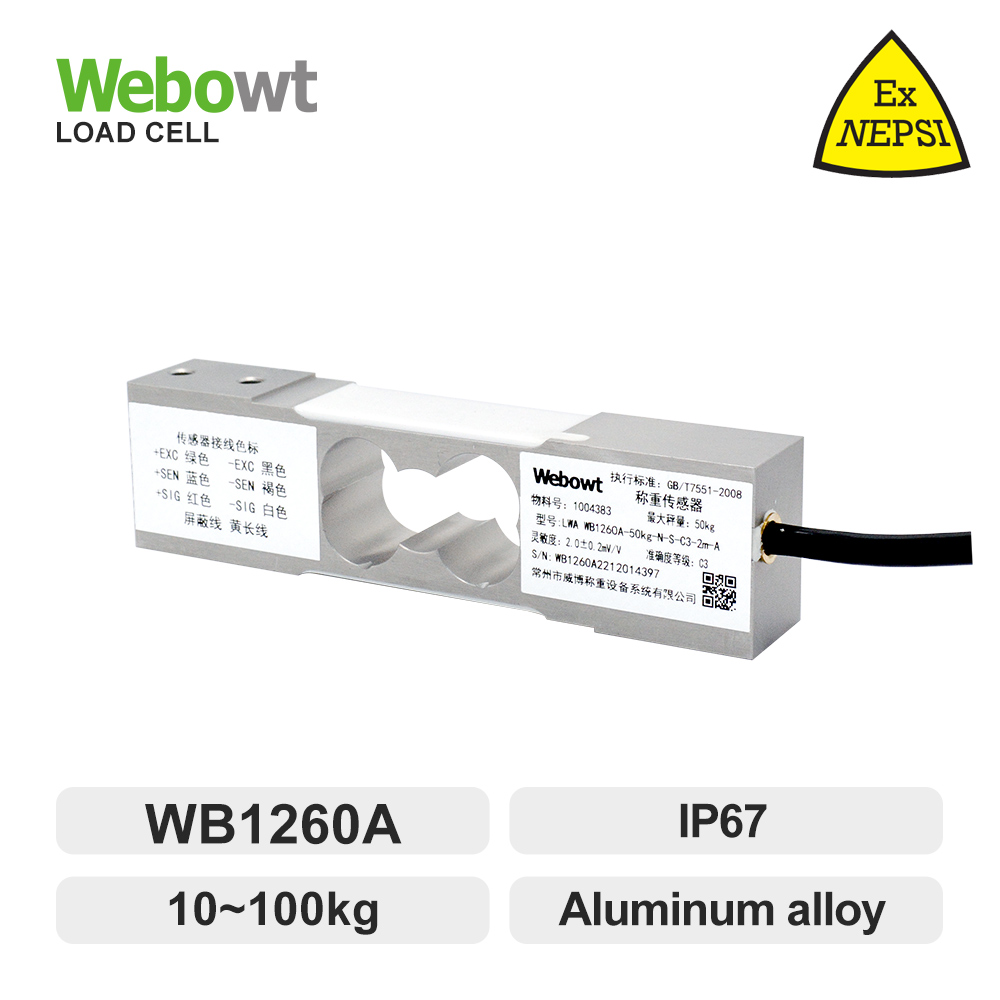

WB1260A , Load Cell 10kg ~ 100kg
WEBOWT
WB1260A
Product Features
Single point load cell
Aluminum alloy
Four-corner deviation compensated
IP Class IP67
Explosion-proof classification:
Ex ia IIC T4 Ga;Ex iaD 20 T135
Suitable for valuation scales, bagging scales and process weighing control, etc.
Product Selection Configuration
Naming rule: load cell LWA(a)-b-c-d-e-f-g-h-i
Product Type | Type | Elastomer Class | Capacity (kg) | Certification/Area | Temperature | Load Cell Accuracy | Load Cell CableLength | Backup |
a | b | C | d | e | f | g | h | i |
LW-Load cell A-Analog Load cell | WB1260A | (Empty): Aluminum alloy | 10,20,30,50,100 | N:Standard X:Explosion-proof | S:Normal temperature | C3,C6 | 2m | A:Standard, output sensitivity 2.0±0.2mV/V F:Customization |
Specifications | ||||||||
Mode | WB1260A | |||||||
Rated capacity | 10 | 2,030 | 50,100 | 10 | 2,030 | 50,100 | ||
Sensitivity | mV/V | 2±0.2 | 2±0.2 | |||||
Accuracy class | C3 | C6 | ||||||
Repeatability error | %R.C. | ≤0.01 | ≤0.01 | |||||
Lag | %R.C. | ≤0.02 | ≤0.01 | |||||
Non-linearity | %R.C. | ≤0.02 | ≤0.01 | |||||
Creep (30 minutes) | %R.C. | ≤0.02 | ≤0.01 | |||||
Zero output | %R.C. | ≤10 | ≤10 | |||||
Temperature compensationrange | ℃ | -10~+40 | -10~+40 | |||||
Opeclassification temperature range | ℃ | -40~+65 | -40~+65 | |||||
Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | ≤0.0005 | |||||
Zero temperature coefficient | %R.C./℃ | ≤0.0023 | ≤0.0013 | |||||
Input impedance | Ω | 410±10 | 410±10 | |||||
Output impedance | Ω | 350±4 | 350±4 | |||||
Insulation resistance | MΩ | ≥5000 (100V DC) | ≥5000(100V DC) | |||||
Recommended excitation voltage | V(DC/AC) | 5~15 | 5~15 | |||||
Maximum excitation voltage | V(DC/AC) | 20 | 20 | |||||
Safety overload | %R.C. | 150 | 150 | |||||
Extreme overload | %R.C. | 300 | 300 | |||||
IP Rating | IP67 | IP67 | ||||||
Cable length | m | 2 | 2 | |||||
Maximum table size | mm | 400×400 | 400×400 | |||||
Recommen ded Bolts | Bolt size | M6 | M6 | |||||
Strength class | Class 8.8 or above | Class 8.8 or above | ||||||
Tightening torque | Nm | 5 | 10 | 15 | 5 | 10 | 15 |
