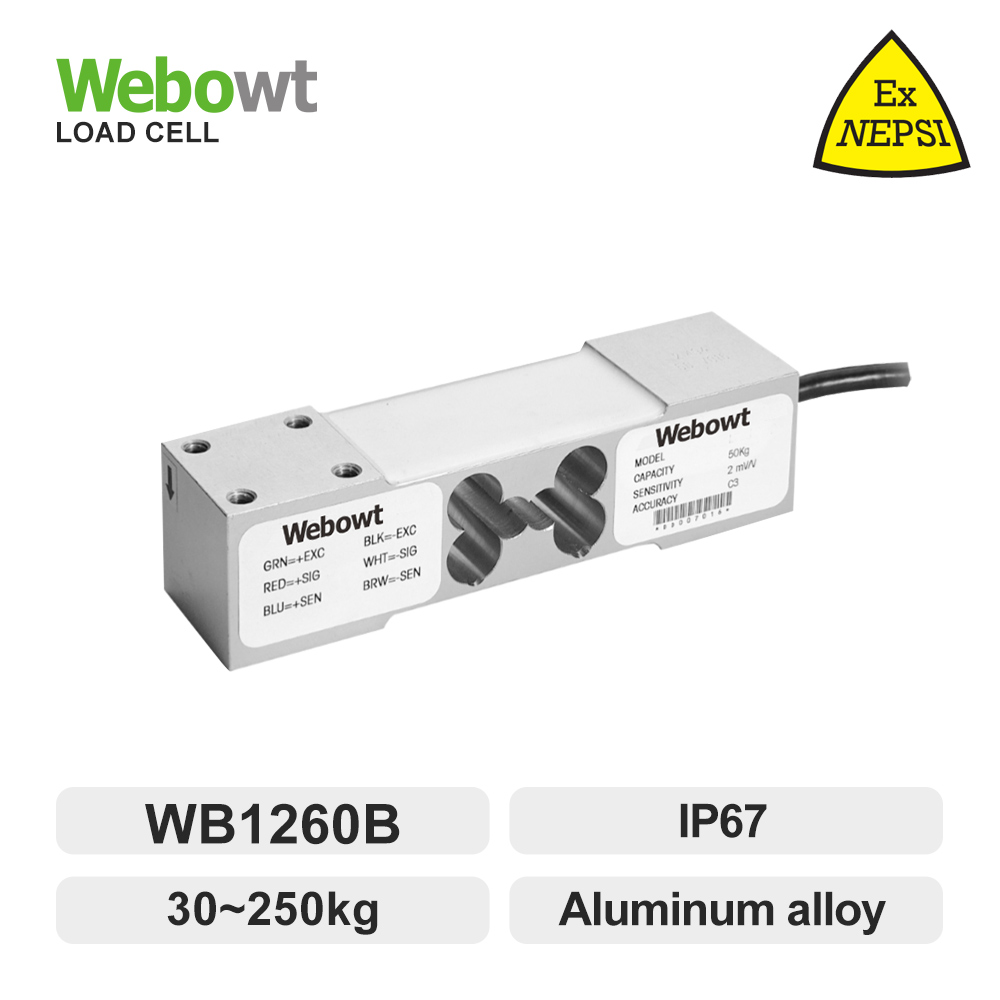

WB1260B , Load Cell 30kg ~ 250kg
WEBOWT
WB1260B
Product Features
Single point load cell
Aluminum alloy
IP Class IP67
Explosion-proof classification:
Ex ia IIC T4 Ga；Ex iaD 20 T135
Suitable for platform scales, bagging scales, counting scales, valuation scales and process weighing equipment, etc.
Product Selection Configuration
Naming rule:load cell LWA(a)-b-c-d-e-f-g-h-i
| Product Type | Type | Elastomer Class | Capacity(kg) | Certification/Area | Temperature | Load Cell Accuracy | Load Cell Cable Length | Backup |
| a | b | C | d | e | f | g | h | i |
| LW-Load cell A-Analog Load cell | WB1260B | (Empty): Aluminum alloy | 30,50,100,150, 200,250 | N:Standard X:Explosion-proof | S:Normal temperature | C3,C6 | 2m | A:Standard, output sensitivity 2.0±0.2mV/V F:Customization |
| Specifications | ||||
| Model | WB1260B | |||
| Rated capacity | 30,50,100,150,200,250 | 30,50,100,150,200,250 | ||
| Sensitivity | mV/V | 2±0.2 | 2±0.2 | |
| Accuracy class | C3 | C6 | ||
| Repeatability error | %R.C | ≤0.01 | ≤0.01 | |
| Lag | %R.C. | ≤0.02 | ≤0.01 | |
| Non-linearity | %R.C. | ≤0.02 | ≤0.01 | |
| Creep (30 minutes) | %R.C. | ≤0.02 | ≤0.01 | |
| Zero output | %R.C. | ≤10 | ≤10 | |
| Temperature compensation range | ℃ | -10~+40 | -10~+40 | |
| Opeclassification temperature range | ℃ | -40~+65 | -40~+65 | |
| Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | ≤0.0005 | |
| Zero temperature coefficient | %R.C./℃ | ≤0.0023 | ≤0.0013 | |
| Input impedance | Ω | 410±10 | 410±10 | |
| Output impedance | Ω | 350±4 | 350±4 | |
| Insulation resistance | MΩ | ≥5000 (100V DC) | ≥5000 (100V DC) | |
| Recommended excitation voltage | V(DC/AC) | 5-15 | 5-15 | |
| Maximum excitation voltage | V(DC/AC) | 20 | 20 | |
| Safety overload | %R.C. | 150 | 150 | |
| Extreme overload | %R.C. | 300 | 300 | |
| IP Rating | IP67 | IP67 | ||
| Cable length | m | 2 | 2 | |
| Maximum table size | mm | 400×400 | 400×400 | |
| Recommended Bolts | Bolt size | M6 | M6 | |
| Strength class Tightening torque | Nm | Class 8.8 or above 20 | Class 8.8 or above 20 | |
Product Features
Single point load cell
Aluminum alloy
IP Class IP67
Explosion-proof classification:
Ex ia IIC T4 Ga；Ex iaD 20 T135
Suitable for platform scales, bagging scales, counting scales, valuation scales and process weighing equipment, etc.
Product Selection Configuration
Naming rule:load cell LWA(a)-b-c-d-e-f-g-h-i
| Product Type | Type | Elastomer Class | Capacity(kg) | Certification/Area | Temperature | Load Cell Accuracy | Load Cell Cable Length | Backup |
| a | b | C | d | e | f | g | h | i |
| LW-Load cell A-Analog Load cell | WB1260B | (Empty): Aluminum alloy | 30,50,100,150, 200,250 | N:Standard X:Explosion-proof | S:Normal temperature | C3,C6 | 2m | A:Standard, output sensitivity 2.0±0.2mV/V F:Customization |
| Specifications | ||||
| Model | WB1260B | |||
| Rated capacity | 30,50,100,150,200,250 | 30,50,100,150,200,250 | ||
| Sensitivity | mV/V | 2±0.2 | 2±0.2 | |
| Accuracy class | C3 | C6 | ||
| Repeatability error | %R.C | ≤0.01 | ≤0.01 | |
| Lag | %R.C. | ≤0.02 | ≤0.01 | |
| Non-linearity | %R.C. | ≤0.02 | ≤0.01 | |
| Creep (30 minutes) | %R.C. | ≤0.02 | ≤0.01 | |
| Zero output | %R.C. | ≤10 | ≤10 | |
| Temperature compensation range | ℃ | -10~+40 | -10~+40 | |
| Opeclassification temperature range | ℃ | -40~+65 | -40~+65 | |
| Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | ≤0.0005 | |
| Zero temperature coefficient | %R.C./℃ | ≤0.0023 | ≤0.0013 | |
| Input impedance | Ω | 410±10 | 410±10 | |
| Output impedance | Ω | 350±4 | 350±4 | |
| Insulation resistance | MΩ | ≥5000 (100V DC) | ≥5000 (100V DC) | |
| Recommended excitation voltage | V(DC/AC) | 5-15 | 5-15 | |
| Maximum excitation voltage | V(DC/AC) | 20 | 20 | |
| Safety overload | %R.C. | 150 | 150 | |
| Extreme overload | %R.C. | 300 | 300 | |
| IP Rating | IP67 | IP67 | ||
| Cable length | m | 2 | 2 | |
| Maximum table size | mm | 400×400 | 400×400 | |
| Recommended Bolts | Bolt size | M6 | M6 | |
| Strength class Tightening torque | Nm | Class 8.8 or above 20 | Class 8.8 or above 20 | |
